Applications And Working Principles of Pneumatic Butterfly Valves

If you’ve worked around fluid control systems, you’ve probably seen a pneumatic butterfly valve in action. These valves are compact, fast-acting, and incredibly reliable, which is why they’re used everywhere—from marine pipelines to HVAC systems and industrial plants. But how do they actually work, and what makes them so useful? Let’s break it down.

What Is a Pneumatic Butterfly Valve

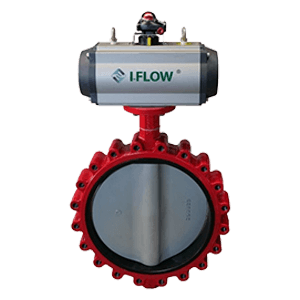

A pneumatic butterfly valve is a type of quarter-turn valve that uses compressed air to control the opening and closing of its disc. The disc sits in the center of the pipe and rotates to regulate flow. When the actuator receives an air signal, it turns the disc either parallel or perpendicular to the flow, allowing or blocking fluid passage.Because the actuator uses air pressure, the operation is smooth, quick, and safe—even in systems handling flammable fluids where electric sparks would be dangerous.

How Does It Work

The working principle is simple but smart. When the pneumatic actuator gets an air signal, it converts that air pressure into mechanical torque. This torque rotates the valve’s shaft, turning the disc by 90 degrees.

• ①When the disc is fully open, the fluid flows freely with minimal resistance.

• ②When it’s partially open, the flow is throttled for control.

• ③When it’s fully closed, the disc seals tightly against the valve seat to stop the flow.

Where Are Pneumatic Butterfly Valves Used

You’ll find pneumatic butterfly valves in many industries because they offer excellent flow control and automation compatibility.

In the marine industry, they’re used for seawater cooling, ballast systems, and fuel transfer lines. In HVAC systems, they control the flow of chilled or heated water. In chemical processing, food manufacturing, and power plants, they handle gases, steam, and liquids with reliability and precision.

Their lightweight design makes them easy to install even in large pipelines. That’s why they’re often the preferred choice for projects where space and weight are limited, such as onboard ships or offshore platforms.

Advantages of Pneumatic Butterfly Valves

• ①Fast operation: Quick response time for opening and closing.

• ②Safe automation: No risk of sparks, ideal for flammable environments.

• ③Compact design: Takes up less space than gate or globe valves.

• ④Easy maintenance: Simple structure with few moving parts.

• ⑤Durable build: Available in materials like stainless steel, cast iron, and PVC for various media.
