Gate valves are a fundamental component in industrial and marine piping systems, providing efficient on-off control of liquids and gases. Designed primarily for full open or full close operation, gate valves offer minimal pressure drop when fully open and provide a secure seal when closed. Understanding the different types of gate valves is critical for selecting the right valve for your application, especially when dealing with harsh environments like marine, oil and gas, or chemical industries. In this guide, we’ll explore the major categories of gate valves and their specific advantages.

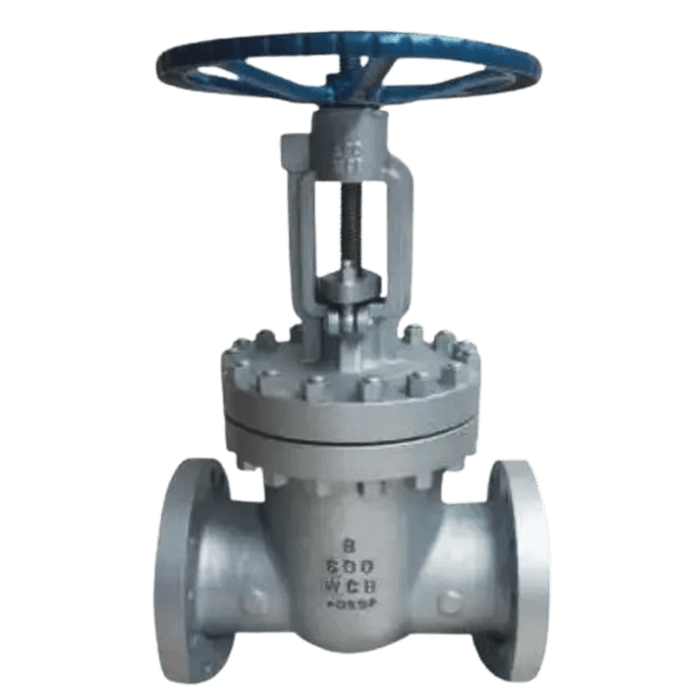

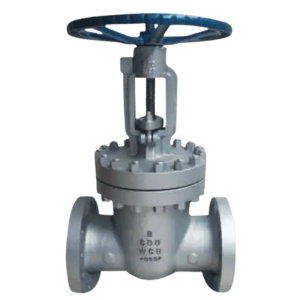

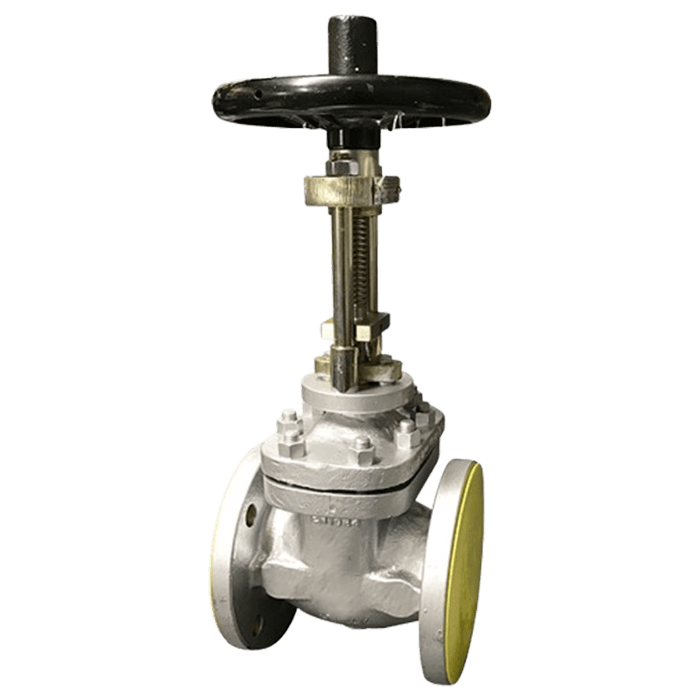

1. Rising Stem Gate Valve
A rising stem gate valve features a threaded stem that moves up and down as the valve is operated. As the valve opens, the stem rises visibly above the handwheel, making it easy to determine whether the valve is open or closed. Commonly used in fire protection systems and marine industries, these valves provide clear visual indication and ease of maintenance.
Key Features
-
Easy visual position indication
-
Rugged and durable
-
Suitable for high-pressure applications

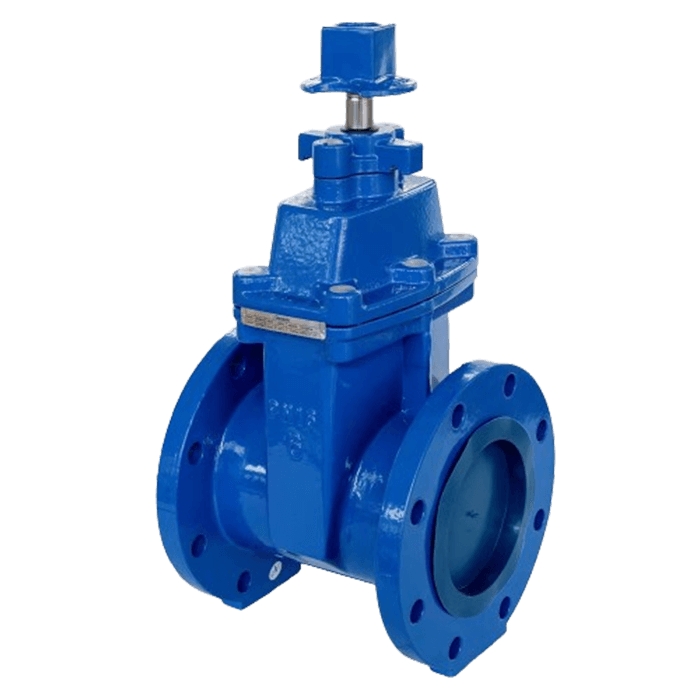

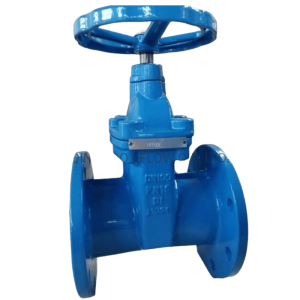

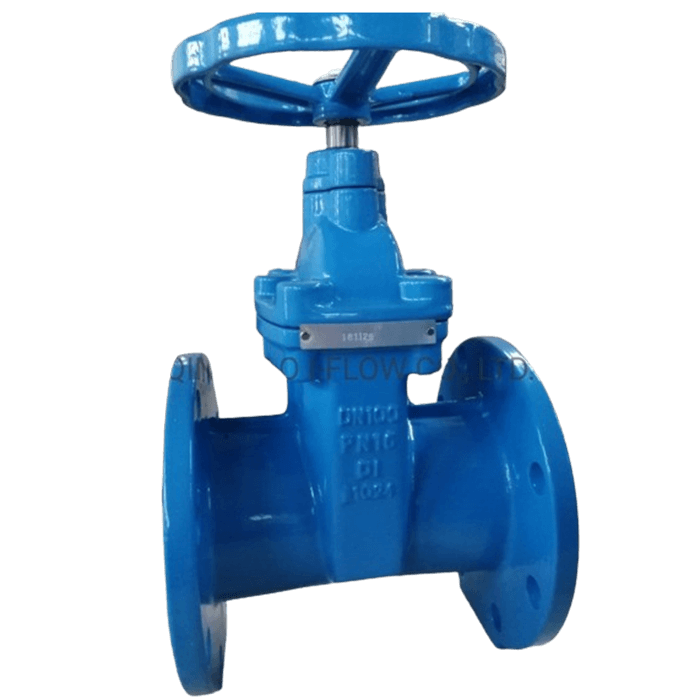

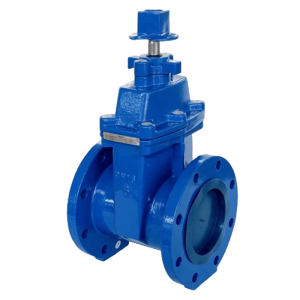

2. Non-Rising Stem Gate Valve
Unlike rising stem designs, the non-rising stem gate valve keeps the stem in place while the internal disc moves up and down. Ideal for tight spaces where vertical clearance is limited, non-rising stem valves are often used in underground installations or compact shipboard piping systems.
Key Features
-
Saves vertical space
-
Stem threads protected inside the valve
-
Commonly used in buried or underwater applications
3. Solid Wedge Gate Valve
A solid wedge gate valve features a one-piece wedge that is robust and simple, making it suitable for a wide range of temperatures and pressures. These valves are highly durable but can experience sealing issues if pipe misalignment occurs.
Key Features
-
Strong and rigid structure
-
Suitable for high-temperature services
-
Lower cost and simple construction
4. Split Wedge or Parallel Disk Gate Valve
A split wedge gate valve uses two separate discs held together by a special mechanism that adjusts automatically to the seating surfaces. This design reduces the chance of the valve sticking due to temperature changes and is typically found in high-temperature, high-pressure systems.
Key Features
-
Self-adjusting sealing
-
Excellent performance under thermal cycling
-
Common in steam, oil, and gas industries

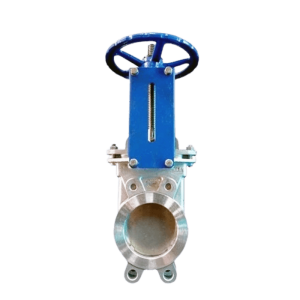

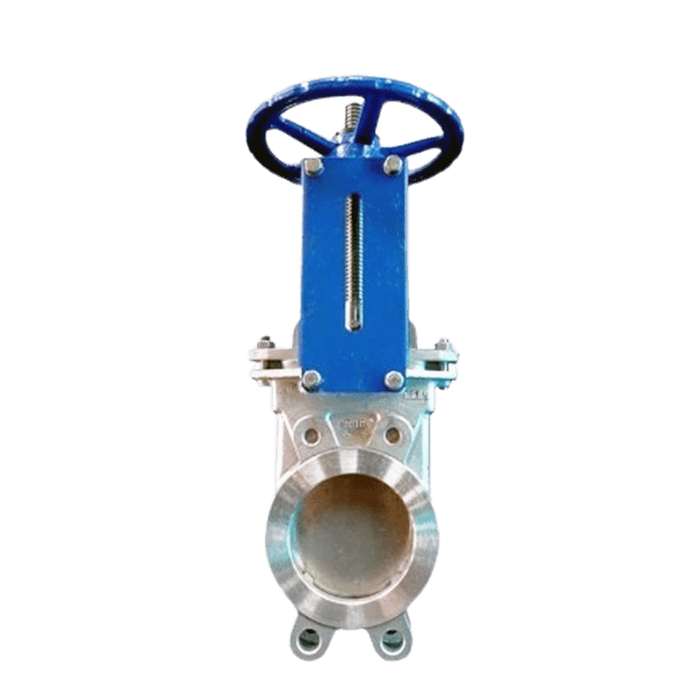

5. Knife Gate Valve
Specifically designed for handling slurry, viscous fluids, and wastewater, the knife gate valve features a sharp-edged blade that cuts through solids. It’s popular in marine wastewater systems, mining operations, and pulp and paper industries.
Key Features
-
Handles thick, solid-laden media
-
Simple and cost-effective
-
Ideal for low-pressure systems
Qingdao I-Flow, a trusted gate valve manufacturer, offers a wide range of high-quality marine gate valves, industrial gate valves, and customized flow control solutions. With strict quality control, CE and WRAS certifications, and over a decade of international experience, I-Flow is your reliable partner for valve excellence.
