If you’ve ever walked on the deck of a ship, you’ve probably noticed small fittings that look simple but play a critical role in safety. These are called air vent heads, and they are vital for the safe operation of ballast tanks, fuel oil tanks, and fresh water tanks. But what exactly do they do, and how do they work? Let’s break it down in plain language.
What Is an Air Vent Head

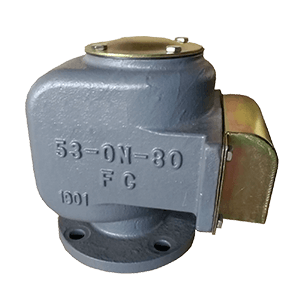

An air vent head in ships is a fitting installed at the top of tank vent lines. Its main job is to allow air to escape when tanks are being filled and to let air enter when tanks are being emptied. At the same time, the air vent head prevents seawater from entering the tanks when waves wash over the deck.
Without this protection, tanks could become over-pressurized or collapse due to vacuum pressure. Even worse, seawater could flow into fuel or ballast tanks, which can be dangerous and costly.
How Does an Air Vent Head Work
The working principle is quite simple but very effective. An air vent head for ballast tanks usually contains a float or a disc inside the casing.
-
When the tank is being filled, the air inside needs to escape. The air vent head allows this air to pass through freely.
-
When the tank is being emptied, air needs to flow back in to replace the liquid. Again, the vent head allows this.
-
If seawater splashes onto the deck and reaches the vent opening, the float type air vent head automatically rises to seal the opening, preventing water from entering. Once the water drains away, the float drops back down, and normal venting resumes.
Types of Air Vent Heads in Marine Applications
There are several types of air vent heads in ships, each suited for different purposes:
-
Float type air vent head – Uses a float ball to seal the vent when seawater enters.
-
Disc type air vent head – Uses a lightweight disc for sealing, commonly seen in ballast systems.
-
High-velocity air vent head – Designed to release air at higher speeds, often used in fuel oil tank venting.
Why Are Air Vent Heads Important
Ships constantly face harsh marine conditions. Waves breaking over the deck, rapid ballast operations, and tank pressure changes all create risks. Without a properly working air vent head, tanks could suffer from dangerous pressure build-up, seawater ingress, or even structural failure.
In short, air vent heads act as safety guardians for ship tanks. They protect the ballast tank air vent system, maintain safe operation, and reduce the chance of contamination.
Maintenance of Marine Air Vent Heads
Like all marine valves and fittings, deck air vent heads require regular inspection. Crew members should check for corrosion, stuck floats, or clogged strainers. A blocked or damaged air vent head can’t perform its job, which puts both the ship and crew at risk.
