In this article, we explore what storm valves are, how they work, and why choosing a reliable marine valve manufacturer—like Qingdao I-Flow—is critical for system performance and safety.
What Is a Storm Valve

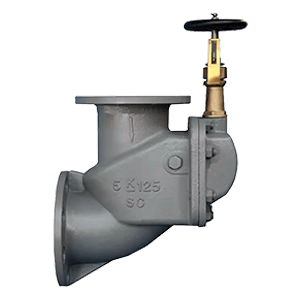

A storm valve, also known as a scupper valve or non-return valve for overboard discharge, is a type of marine check valve designed to prevent seawater from flowing backward into the vessel through drainage systems. These valves are installed in overboard discharge lines connected to sinks, showers, bilge systems, or waste tanks.
Their primary role? Allow internal fluids to drain out, while blocking outside seawater from entering—especially during rough sea conditions, storms, or if the vessel lists.
Why Storm Valves Matter on Ships
1. Prevention of Backflow and Flooding
In heavy seas or when a ship is heeled over, seawater can easily rise above discharge outlets. Without storm valves, water could backflow into critical compartments, flooding crew quarters, machinery spaces, or sanitary systems.
2. Maintaining Watertight Integrity
Storm valves act as a safeguard for maintaining watertight bulkheads and protecting vulnerable pipe penetrations through the hull.
3. Compliance with Maritime Regulations
According to SOLAS and class society rules (like DNV, ABS, and LR), many overboard discharge systems must be fitted with automatic or manually controlled storm valves to prevent sea ingress.
4. Operational Continuity
Proper drainage is critical in systems like bilge pumping, black water discharge, or grey water collection. A failed storm valve could cause backpressure or blockage, leading to system failure.
How Storm Valves Work
Storm valves are typically constructed as swing check valves or spring-loaded non-return valves. They open under the pressure of discharged liquid from inside the vessel but close when external water pressure exceeds internal pressure. Some advanced models include manual override levers, visual position indicators, and grease nipples for maintenance.
Where Are Storm Valves Located
-
☆Overboard outlets from sinks, toilets, and showers
-
☆Black water and grey water holding tanks
-
☆Bilge system discharge lines
-
☆Galley and laundry drains
How to Choose the Right Storm Valve
| Selection Criteria | Considerations |
|---|---|
| Material | Choose corrosion-resistant alloys suitable for saltwater exposure. |
| Pressure Rating | Match the valve to the system’s operating pressure. |
| Size & Flow Capacity | Ensure it aligns with pipe diameter and flow requirements. |
| Approval Certifications | Verify compliance with IMO, SOLAS, and class society standards. |
| Ease of Maintenance | Opt for designs with accessible seats and simple inspection mechanisms. |
Why Choose Qingdao I-Flow for Marine Storm Valves
Qingdao I-Flow Co., Ltd. is a trusted marine valve manufacturer with over a decade of experience serving global maritime markets. With a commitment to quality, safety, and global compliance, I-FLOW products are featured in international projects such as MSC ships, FIAT workshops, and more.Our storm valves are:
-
1.Built from marine-grade materials with high corrosion resistance
-
2.Available in a range of sizes and types, including DNV, ABS, CE certified models
-
3.Designed for long service life and minimal maintenance
-
4.Widely used on commercial vessels, yachts, naval ships, and offshore rigs
