What Are The Types of Globe Valves

What Is a Globe Valve

A globe valve controls flow using a movable disk (or plug) that moves perpendicular to the seat. This design allows for fine throttling, reliable sealing, and effective shut-off, especially in steam, cooling water, fuel oil, and chemical systems.

Common Types of Globe Valves

1. Z-Type Globe Valve (Tee Pattern)

• ①Design: The stem and disk move vertically; the seat is horizontal.

• ②Best For: Excellent throttling; common in water treatment, fuel systems, and marine pipelines.

• ③Advantages: Easy to maintain, good control capability.

• ④Disadvantage: High pressure drop due to flow path changes.

2. Y-Type Globe Valve

• ①Design: The seat and stem are at a 45° angle.

• ②Best For: High-pressure, high-flow applications with less resistance.

• ③Advantages: Lower pressure drop than Z-type; good for high-temperature service.

• ④Disadvantage: More complex to manufacture and repair.

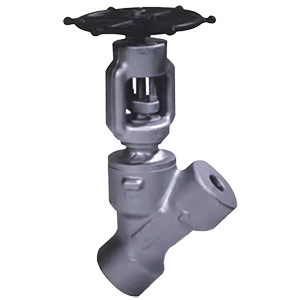

3. Angle Globe Valve

• ①Design: Inlet and outlet ports are at a 90° angle.

• ②Best For: Where piping turns are needed (e.g., in cooling systems and condensate lines).

• ③Advantages: Eliminates the need for an elbow; reduced turbulence.

• ④Disadvantage: Limited use for high throttling precision.

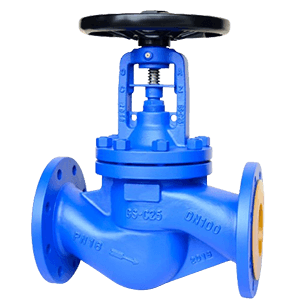

4. Bellows Seal Globe Valve

• ①Design: Includes a metallic bellows to seal the stem, preventing leakage.

• ②Best For: Toxic, radioactive, or hazardous fluids in marine or chemical processing.

• ③Advantages: Zero stem leakage; long life.

• ④Disadvantage: More expensive and requires precision installation.

5. Needle Type Globe Valve

• ①Design: A long, tapered needle-shaped disk for very fine throttling.

• ②Best For: Instrumentation and small-bore flow control.

• ③Advantages: High accuracy, excellent for low flow.

• ④Disadvantage: Not suitable for large pipelines or quick shut-off.

6. Stop Check Globe Valve

• ①Design: Combines features of globe and check valves.

• ②Best For: Preventing reverse flow while allowing manual shut-off.

• ③Advantages: Dual functionality, ideal for critical systems.

• ④Disadvantage: Slightly more complex construction.

Common Applications

I-FLOW Globe Valves for Marine & Industrial Use

At Qingdao I-FLOW, we offer a full range of marine-class globe valves.Our globe valves are designed to deliver high performance, low leakage, and long-term reliability in the most demanding environments.
