What Is an NRS Gate Valve

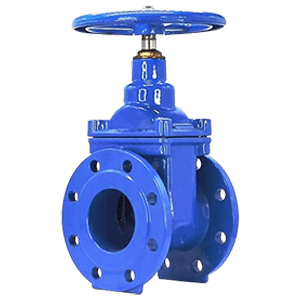

NRS (Non-Rising Stem) gate valves have a stem that rotates in place when operated—the stem does not move up or down externally as the valve is opened or closed.
Key Features:
- ①The stem threads are inside the valve body, in contact with the fluid.
- ②Compact design—ideal for tight spaces or underground installation.
- ③Commonly used in municipal water systems, irrigation, and fire hydrant lines.
Considerations:
- ①The valve position is not visible externally—you must rely on a position indicator or memory.
- ②Since the stem is exposed to the media inside the valve, corrosion can become a maintenance issue in certain environments.
What Is an OS&Y Gate Valve
OS&Y (Outside Screw and Yoke) gate valves feature a stem that rises and lowers visibly as the handwheel is turned. The threads are outside the valve body, isolated from the fluid.
Key Features:
- ①The valve position is easy to see—if the stem is up, the valve is open; if down, it’s closed.
- ②The stem is protected from the media, reducing the chance of corrosion.
- ③Required by many fire protection standards (NFPA) for fire sprinkler systems.
Considerations:
- ①Requires more vertical space to accommodate the rising stem.
- ②Typically used above ground, in mechanical rooms, or where visual verification is needed.
NRS VS OS&Y: A Side-by-Side Comparison
| Feature | NRS Gate Valve | OS&Y Gate Valve |
|---|---|---|
| Stem Movement | Internal, does not rise | External, stem rises as valve opens |
| Visual Position Indicator | No | Yes |
| Space Requirement | Compact, better for underground | Requires vertical clearance |
| Corrosion Resistance | More susceptible (stem contacts fluid) | Better protection (stem isolated) |
| Ideal Use Case | Underground water mains, hydrants | Fire sprinkler systems, mechanical rooms |
| Fire Protection Use | Not recommended by NFPA for fire systems | NFPA-preferred standard for fire systems |
| Maintenance | Slightly harder to inspect or repair | Easier to inspect visually and maintain |
Where Are OS&Y and NRS Valves Commonly Used
NRS Gate Valves
- ①Underground water supply pipelines
- ②Hydrant isolation
- ③Irrigation systems
- ④Industrial systems with limited space
OS&Y Gate Valves
- ①Fire sprinkler systems (NFPA-compliant)
- ②Marine engine rooms
- ③Refineries and chemical plants
- ④Water treatment facilities
Why It Matters in Marine and Fire Applications
- ①In fire protection, visual confirmation is critical—OS&Y valves are preferred.
- ②In marine systems, where space is limited and conditions are harsh, NRS valves may be more suitable, but require corrosion-resistant materials.
