In the complex world of marine piping systems, choosing the right type of valve is critical for efficient and safe operations. Among the most commonly used configurations are straight valves and angle valves. While they may serve similar purposes in controlling flow, their designs, applications, and advantages differ significantly.

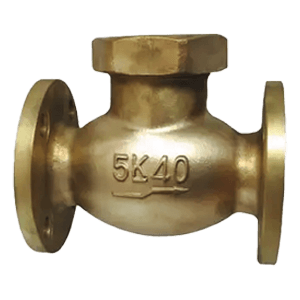

What Is a Straight Valve
A straight valve is a type of valve where the inlet and outlet ports are aligned in a straight line. When fluid flows through a straight valve, it travels in a linear direction with minimal deviation. This design is commonly found in globe valves, gate valves, and ball valves used in straight pipeline sections.They are preferred in applications where pipeline routing is linear and pressure loss needs to be minimized.
Key Features of Straight Valves
- ☆Inline flow design for minimal resistance
- ☆Suitable for long, straight pipelines
- ☆Easy to install and maintain
- ☆Ideal for systems requiring high flow efficiency

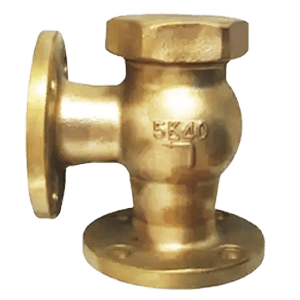

What Is an Angle Valve
An angle valve, on the other hand, changes the flow direction by 90 degrees within the valve body. The inlet and outlet are positioned at a right angle, making it suitable for systems with limited space or requiring a directional change in the pipeline layout.
Key Features of Angle Valves
- ☆Provides right-angle flow direction
- ☆Reduces the need for additional pipe fittings like elbows
- ☆Helps save space on board ships
- ☆Common in areas with compact piping arrangements
Straight Valve VS Angle Valve
|
Feature |
Straight Valve |
Angle Valve |
| Flow Direction | Straight-line | 90-degree angle |
| Space Requirement | Requires more linear space | Space-saving, ideal for tight layouts |
| Pressure Loss | Lower pressure drop | Slightly higher due to directional change |
| Installation Flexibility | Less flexible in confined areas | Highly flexible for corners and walls |
| Maintenance Accessibility | Good in open spaces | Better in compact systems |
| Common Valve Types | Gate, globe, ball valves | Globe, stop, safety valves |
Trust I-FLOW for Marine Valve Solutions
At Qingdao I-Flow, we are a trusted marine valve manufacturer offering both straight-type and angle-type globe valves, check valves, gate valves, and more. Our valves are designed to withstand harsh marine environments and comply with international standards such as CE, WRAS, ABS, and DNV.
With over 10 years of experience and a global client base in more than 40 countries, I-FLOW provides durable, high-performance valves trusted in vessels, offshore platforms, and shipyards worldwide.
