What Is The Purpose of Air Vent On Ballast Tank

In this article, we’ll explore the purpose of air vents on ballast tanks, their design principles, and why choosing high-quality marine vent valves from trusted manufacturers like Qingdao I-Flow is crucial for safe marine operations.

Why Do Ballast Tanks Need Air Vents

Ballast tanks are filled or emptied with water to control a ship’s buoyancy and balance. During this process, large volumes of air must be displaced to prevent pressure build-up or vacuum formation.

Prevent Over-Pressurization or Vacuum

• ①When ballast water is pumped into a tank, air must escape.

• ②When water is discharged, air must enter to replace the volume.

• ③Without proper venting, tanks could collapse inward (vacuum) or burst (pressure)

Ensure Smooth Ballasting and Deballasting

• ①A well-functioning air vent system enables uninterrupted filling or emptying.

• ②Prevents hydraulic lock or flow restriction in pipelines.

Enhance Crew and Vessel Safety

• ①Air vents prevent structural damage to tanks and surrounding piping systems.

• ②They reduce the risk of explosive pressure and uncontrolled spills.

Enable Emergency Air Flow

• ①In the event of system failure, vents serve as a safety backup to release air or equalize pressure quickly.

Design and Placement of Air Vents on Ships

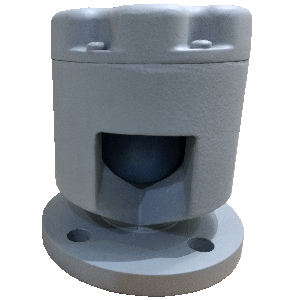

Air vent head are typically installed on the top of ballast tanks and extend above the deck. They often feature:

• ①Non-return valves to prevent seawater ingress

• ②Flame arrestors in hazardous zones

• ③Protective mesh or domes to block debris

• ④Flexible couplings to absorb vibration

Vent heads must:

• ①Be high enough to prevent wave ingress

• ②Be strong enough to withstand impacts

• ③Be made from corrosion-resistant materials (like stainless steel or bronze)

Common Air Vent Problems

• ①Blockage due to corrosion, marine growth, or dirt

• ②Frozen or stuck vent heads

• ③Leaking seals or damaged valves

• ④Water ingress if not installed at the correct height

Why Choose Qingdao I-Flow Marine Valves for Vent Systems

With over a decade of experience supplying marine valve solutions to over 40 countries, we’re proud to support vessel safety and environmental compliance worldwide.At Qingdao I-Flow, we supply a full range of marine-grade valves and vent heads designed for ballast systems, including:

• ①Air release valves, air vacuum valves, storm valves

• ②Durable materials, bronze, stainless steel, ductile iron

• ③Compliant with IMO, DNV, ABS, and CE standards

• ④Custom engineering solutions for vessel retrofits or new builds
