PN25 Ball Valve
DN20
Features
Product Overview
Generally used in connection setups that require no specific condition or material, PN25 ball valves offer long-term sealing and reliable performance. Custom ball valves from I-FLOW go through the painstaking design and rigorous quality testing to achieve next-level performance.
Technical Requirement
High Accuracy: Ensures precise temperature control by opening or closing the valve in response to temperature fluctuations.
Durability: Made from high-quality materials, ensuring long-lasting performance in high-pressure and high-temperature environments.
Wide Applications: Commonly used in HVAC systems, industrial cooling systems, and temperature-sensitive processes in sectors like food and beverage, pharmaceuticals, and chemical manufacturing.

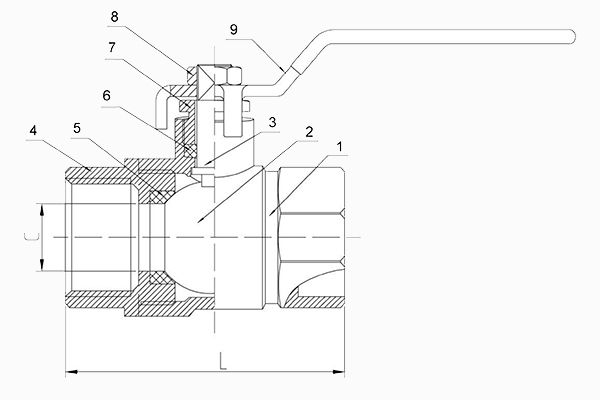

Specification
| NO. | Name | Qty. | Material |  |
| 1 | Boyd | 1 | Hpb57-3 | |
| 2 | Ball | 1 | Fe | |
| 3 | Stem | 1 | Hpb57-3 | |
| 4 | Bonnet | 2 | Hbp57-3 | |
| 5 | Seat | 1 | PTFE | |
| 6 | Bushing | 1 | PTFE | |
| 7 | Gland | 1 | Hbp57-3 | |
| 8 | Nut | 1 | Fe | |
| 9 | Wheel | 1 | Fe |
Dimensions Data
| DN | L | Weight(g) |
| 1/4” | 41 | 80 |
| 3/8” | 47 | 120 |
| 1/2” | 57.5 | 240 |
| 3/4” | 61.5 | 310 |
| 1” | 70 | 450 |
| 1 1/4” | 79 | 608 |
| 1 1/2” | 86 | 893 |
| 2” | 97 | 1181 |
| 2 1/2” | 100 | 1906 |
| 3” | 113 | 3120 |
