API600 Class 150 OS&Y Cast Steel Gate Valve
GAV701-150
Product Description
The API600 Class 150 OS&Y Cast Steel Gate Valve combines high-quality materials and design features to facilitate reliable and efficient fluid control in industrial applications.
It conforms to rigorous testing standards to ensure optimal performance and safety. The valve is designed to withstand high pressures and temperatures while maintaining a tight seal to prevent leakage. It features an outside screw and yoke (OS&Y) design for easy operation and visual indication of the valve position.
The cast steel construction provides durability and resistance to corrosion, making it suitable for a wide range of challenging environments. Its compliance with API600 standards ensures that it meets stringent industry requirements for quality and performance.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Design and Manufacture Conform to API 600
· Flange dimensions Conform to ASME B16.5
· Face to Face dimensions Conform to ASME B16.10
· Testing Conform to API 598
· Driving mode: hand wheel, bevel gear, electric
Specification
| No. | Part Name | Material |
| 1 | Body | A216-WCB |
| 2 | Seat Ring | A105+CR13 |
| 3 | Wedge | A216-WCB+CR13 |
| 4 | Bonnet Stud Nut | A194-2H |
| 5 | Bonnet Stud | A193-B7 |
| 6 | Stem | A182-F6a |
| 7 | Bonnet | A216-WCB |
| 8 | Stem Back Seat | A276-420 |
| 9 | Eyebolt pin | Carbon Steel |
| 10 | Eyebolt | Carbon Steel |
| 11 | Eyebolt Nut | Carbon Steel |
| 12 | Grease Fitting | Brass+Steel |
| 13 | Handwheel Nut | Carbon Steel |
| 14 | Handwheel | Ductile Iron |
| 15 | Yokesleeve Jam nut | Carbon Steel |
| 16 | Yokesleeve | Bronze |
| 17 | Gland Flange | A216-WCB |
| 18 | Gland | A276-420 |
| 19 | Packing | Graphite |
| 20 | Bonnet Gasket | Graphite+304 |

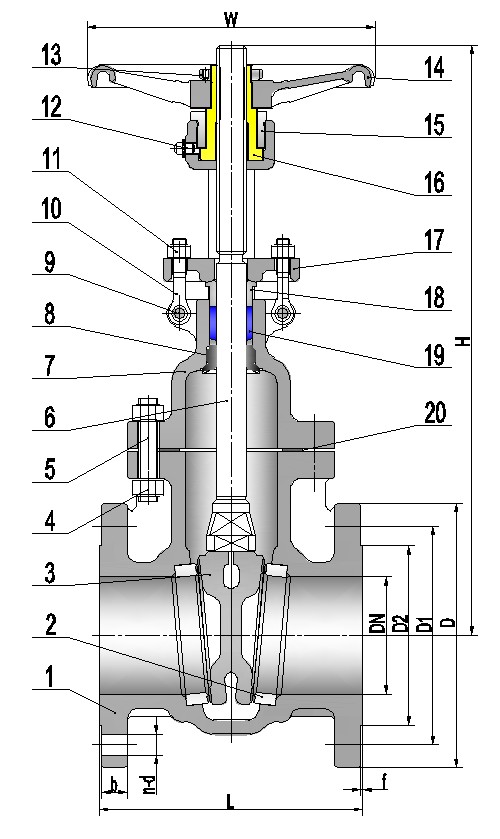

Product wireframe
Dimensions Data
| NPS | 2 | 2½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| L | 177.8 | 190.5 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 | 381 | 406 | 432 | 457 | 508 |
| D | 152 | 178 | 191 | 229 | 254 | 279 | 343 | 406 | 483 | 533 | 597 | 635 | 699 | 813 |
| D1 | 120.7 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | 298.5 | 362 | 431.8 | 476.3 | 539.8 | 577.9 | 635 | 749.3 |
| D2 | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
| b | 14.4 | 16.4 | 17.9 | 22.4 | 22.4 | 23.9 | 26.9 | 28.9 | 30.2 | 33.9 | 35.4 | 38.4 | 41.4 | 46.4 |
| n-d | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 |
| f | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
| H | 345 | 387 | 430 | 513 | 583 | 648 | 790 | 935 | 1100 | 1200 | 1330 | 1480 | 1635 | 1935 |
| W | 200 | 200 | 250 | 250 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 600 | 600 | 650 |
