API600 Class 600 OS&Y Cast Steel Gate Valve

GAV701-600

Standard: API 598/600

Pressure:1~10MPa

Size:DN50~DN600:2’’-24’’

Material:WCB,Bronze,Brass,Stainless steel,A105

Type: Rising Stem, BB, TB, OS&Y

Medium: water oil gas and so on

Operation: Hand Wheel. Gear Devices, Electric, Etc


Product Detail

Product Tags

Product Description

The API600 Class 600 OS&Y Cast Steel Gate Valve consists of several key components. The valve body houses the gate and provides a conduit for fluid flow.

The gate is controlled by the stem, which passes through the bonnet and is connected to the handwheel or actuator for operation. The stem is sealed by packing within the bonnet to prevent leakage. The valve includes flanges for connection to piping systems.

Inside the valve, the seat provides a tight seal against the gate to control fluid flow. The OS&Y design ensures the stem’s threads are outside the valve, keeping them clear of the flow path and providing a visual indicator of the valve’s status. These components work together to provide reliable, high-performance fluid control in various industrial applications.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· Design and Manufacture Conform to API 600
· Flange dimensions Conform to ASME B16.5
· Face to Face dimensions Conform to ASME B16.10
· Testing Conform to API 598
· Driving mode: hand wheel, bevel gear, electric

Specification

Part Name Material
Body A216-WCB
Wedge A216-WCB+CR13
Bonnet Stud Nut A194-2H
Bonnet Stud A193-B7
Stem A182-F6a
Bonnet A216-WCB
Stem Back Seat A276-420
Eyebolt pin Carbon Steel
Handwheel Ductile Iron

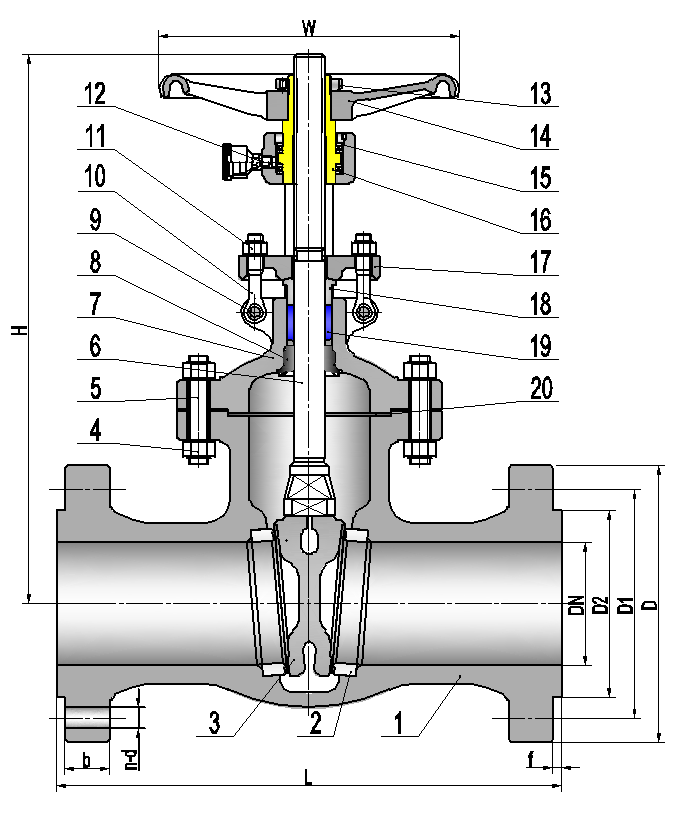

Product wireframe

Dimensions Data

NPS 2 2 3 4 5 6 8 10 12 14 16 18 20 24
L 177.8 190.5 203.2 228.6 254 266.7 292.1 330.2 355.6 381 406 432 457 508
D 152 178 191 229 254 279 343 406 483 533 597 635 699 813
D1 120.7 139.7 152.4 190.5 215.9 241.3 298.5 362 431.8 476.3 539.8 577.9 635 749.3
D2 92 105 127 157 186 216 270 324 381 413 470 533 584 692
b 14.4 16.4 17.9 22.4 22.4 23.9 26.9 28.9 30.2 33.9 35.4 38.4 41.4 46.4
n-d 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
f 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
H 345 387 430 513 583 648 790 935 1100 1200 1330 1480 1635 1935
W 200 200 250 250 300 300 350 400 450 500 500 600 600 650
