DIN PN25 Ductile Iron Y-STRAINER Featured Image
  • DIN PN25 Ductile Iron Y-STRAINER

DIN PN25 Ductile Iron Y-STRAINER

STR801-PN25

DN50~DN300 meshes Φ1.5

DN350~DN600 meshes Φ3.0

It can be manufactured according to customer’s requirement


Product Detail

Product Tags

Product Description

The DIN PN25 Ductile Iron Y-STRAINER is a pipe strainer with the following features, benefits and uses:

Introduce: DIN PN25 Ductile Iron Y-STRAINER is a pipeline Y-type filter that complies with German Industrial Standards (DIN). It is made of ductile iron (Ductile Iron) and has a working pressure level of PN25. It is suitable for medium pressure environments.

Usage: DIN PN25 Ductile Iron Y-STRAINER is mainly used in pipeline systems to filter solid particles and impurities in the media to protect valves, pumps and other equipment in the pipeline system from damage and ensure the stable operation of the system. This type of filter is usually widely used in industrial production, water supply systems, chemical plants and other occasions where media needs to be filtered and purified.

Features

Product Overview

Ductile iron manufacturing: Ductile iron has high strength and corrosion resistance, is suitable for a variety of media, and has a long service life.
Y-shaped design: The Y-shaped filter design can effectively capture solid particles and impurities and keep the pipeline system clean.
DIN standard: It complies with German industrial standards, indicating that the product has a certain quality and performance guarantee.

product_overview_r
product_overview_r

Technical Requirement

· Face to Face dimensions Conform to EN558-1 list 1
· Flange dimensions Conform to EN1092-2 PN25
· Testing Conform to EN12266-1

Specification

Part Name Material
BODY EN-GJS-450-10
SCREEN SS304
BONNET EN-GJS-450-10
PLUG MALLEABLE CAST IRON
BONNET GASKET Graphite +08F

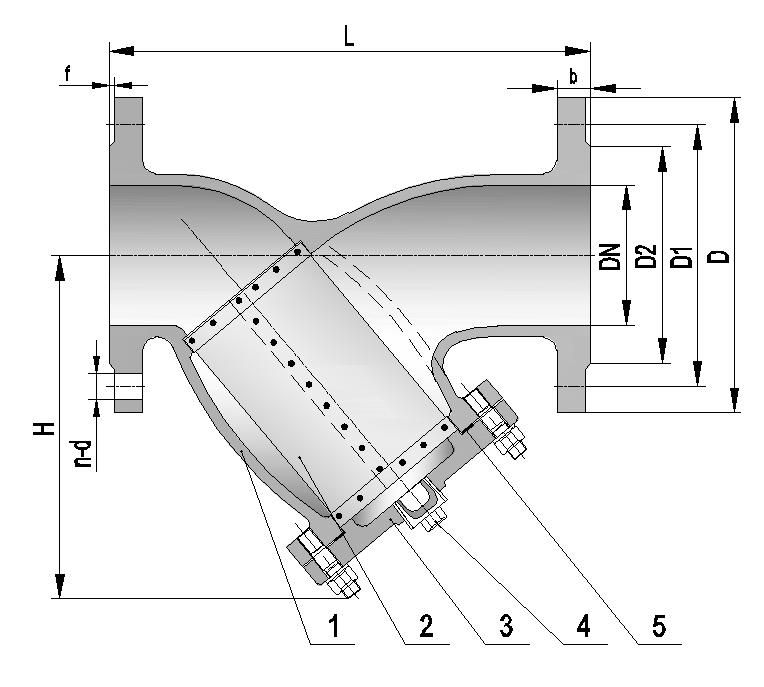

Product wireframe

Dimensions Data

DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L 230 290 310 350 400 480 600 730 850 980 1100 1200 1250 1450
D 165 185 200 235 270 300 360 425 485 555 620 670 730 845
D1 125 145 160 190 220 250 310 370 430 490 550 600 660 770
D2 99 118 132 156 184 211 274 330 389 448 503 548 609 720
b 19 19 19 19 19 20 22 24.5 27.5 30 32 34.5 36.5 42
n-d 4-19 8-19 8-19 8-23 8-28 8-28 12-28 12-31 16-31 16-34 16-37 20-37 20-37 20-41
f 3 3 3 3 3 3 3 3 4 4 4 4 4 5
H 152 186.5 203 250 288 325 405 496 574 660 727 826.5 884 1022
