JIS F 7304 Bronze 16K angle valves Featured Image
  • JIS F 7304 Bronze 16K angle valves
  • JIS F 7304 Bronze 16K angle valves
  • JIS F 7304 Bronze 16K angle valves

JIS F 7304 Bronze 16K angle valves

F7304

Standard: JIS F7301, 7302, 7303, 7304, 7351, 7352, 7409, 7410

Pressure: 5K, 10K, 16K

Size: DN15-DN300

Material: Castiron, caststeel, forgedsteel, brass, bronze

Type: Globevalve, anglevalve

Media: Water, Oil, Steam


Product Detail

Product Tags

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· Design and Manufacture conform to BS5163
· Flange dimensions conform to EN1092-2 PN16
· Face to face dimensions conform to BS5163
· Testing conform to BS516, 3EN12266-1
· Driving mode: Hand wheel, square cover

Specification

HANDWHEEL FC200
STEM C3771BD OR BE
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

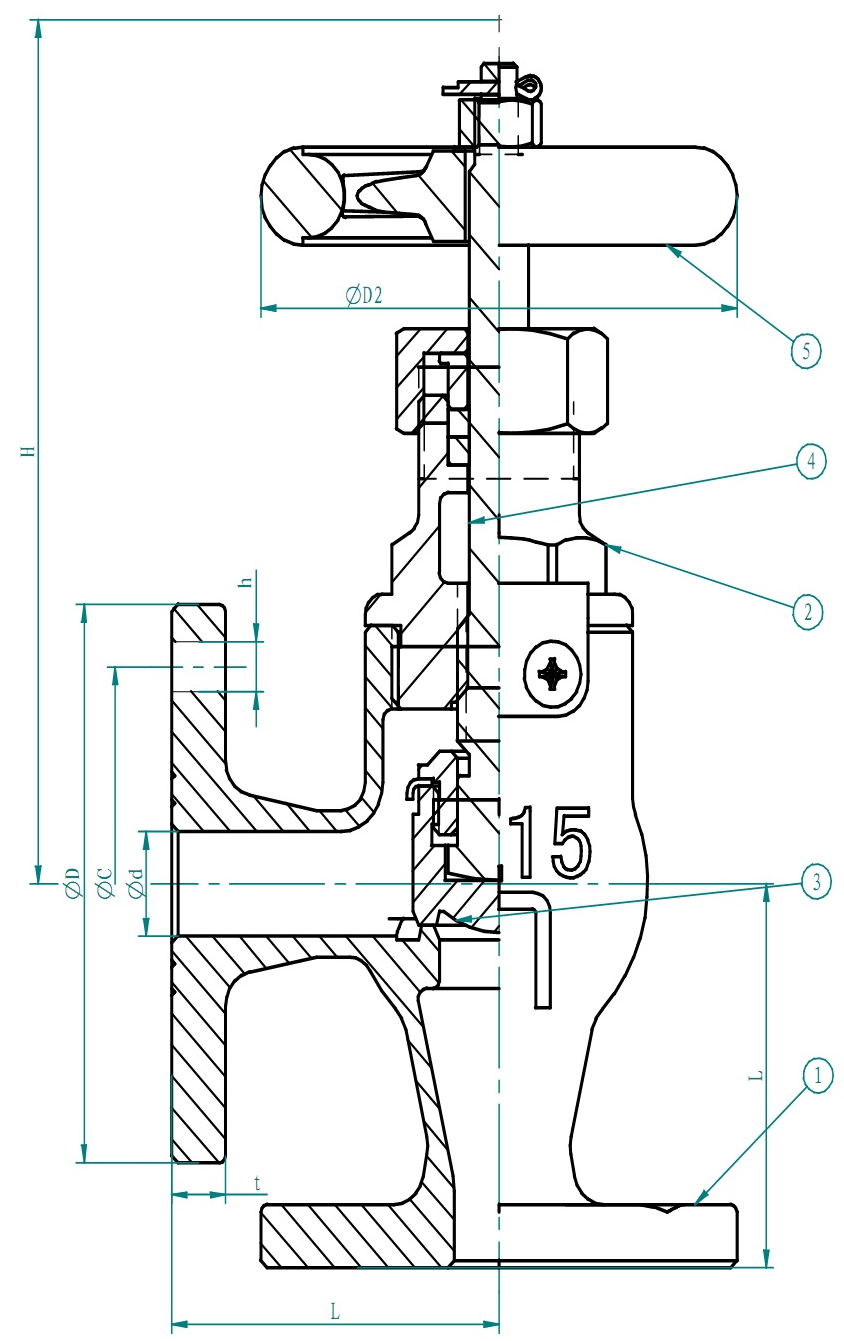

Product wireframe

Dimensions Data

DN D L D C NO. H T H D2
15 15 70 95 70 4 15 12 120 80
20 20 75 100 75 4 15 14 130 100
25 25 85 125 90 4 19 14 145 125
32 32 95 135 100 4 19 16 150 125
40 40 100 140 105 4 19 16 165 140
