What Is a Mud Box
A mud box is a type of coarse strainer used in ship piping systems to filter out large debris from liquids such as seawater or bilge water before they enter essential systems like pumps, cooling systems, or ballast tanks.
It is typically installed:Before the sea chest or suction lines.In bilge and ballast lines.Ahead of pipeline pumps.At overboard discharge points

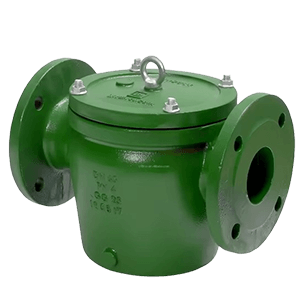

A mud box consists of a removable perforated strainer basket or mesh, housed inside a cast or welded body, with a bolted cover for maintenance access.
Key Functions and Benefits of a Mud Box
1. Protects Pumps and Valves
Large debris like shells, rust flakes, seaweed, or mud can damage pump impellers, clog valves, and block cooling lines. A mud box acts as a first line of defense, preventing blockages and mechanical failure.
2. Ensures Uninterrupted Fluid Flow
By capturing coarse materials, the mud box helps maintain a consistent flow rate in seawater and ballast systems, reducing the chance of reduced suction pressure or cavitation.
3. Simplifies Maintenance
Unlike fine mesh strainers, mud boxes are easier to inspect and clean. The removable cover and basket allow for quick debris removal during routine ship maintenance.
4. Improves System Longevity
Cleaner flow means less wear and tear on pumps, pipes, and downstream components—ultimately reducing repair costs and increasing system reliability.
Typical Applications in Marine Systems
| System | Mud Box Role |
|---|---|
| Ballast water intake | Filters mud and debris from seawater before entering tanks |
| Bilge lines | Traps loose rust, sediment, and debris from bilge water |
| Sea water cooling | Prevents marine growth from entering engine cooling systems |
| General service water | Protects valves and fittings in washdown and utility systems |
Material and Design Considerations
-
①Body Materials: Cast iron, bronze, stainless steel (for corrosion resistance)
-
②Strainer Types: Perforated metal baskets (coarse) or mesh-lined (optional)
-
③Standards: Should comply with IMO regulations and classification society rules (DNV, ABS, CCS, etc.)
Mud Box VS Y-Strainer or Basket Strainer
| Feature | Mud Box | Y-Strainer | Basket Strainer |
|---|---|---|---|
| Debris size handled | Large, coarse debris | Finer particles | Medium to fine particles |
| Maintenance ease | Easy, tool-access cover | Often inline, harder to clean | Hinged/bolted cover |
| Flow orientation | Typically horizontal/vertical | Inline (angled) | Inline (vertical) |
Why Choose I-FLOW Marine Mud Boxes
Qingdao I-FLOW, a leading marine valve and component manufacturer, offers robust and customizable mud boxes designed to protect your ship’s critical systems. Our mud boxes are:
-
①Built to marine standards (DNV, ABS, CCS certified)
-
②Available in various materials and sizes
-
③Designed for long service life and easy cleaning
-
④Ideal for ballast, bilge, and sea water cooling applications
