DIN Straight Cast Iron Mud Box Valve

NO.8

Face to face to DIN87151.

Pressure rating PN4.

Inspection to EN12266-1.


Product Detail

Product Tags

Product Description

DIN straight-through cast iron mud box valve is a valve used in pipeline systems, usually used to control and regulate impurities and solid particles in fluids.

Introduce: The DIN straight-through cast iron mud box valve is a valve device with a sturdy structure and corrosion-resistant material, designed to prevent clogging of particulate matter in pipelines and reduce system maintenance.

Advantage:

Prevent clogging: By blocking solid particles, it can effectively prevent clogging of the pipeline system and reduce maintenance costs.
High reliability: It has stable performance and long service life, and can operate continuously and stably.
Easy maintenance: simple structure, easy to clean and maintain, ensuring long-term and effective use.

Usage: DIN straight-through cast iron mud box valves are mainly used in industrial pipeline systems, especially when it is necessary to control impurities and solid particles in the fluid to avoid clogging the pipeline and damaging the equipment. This kind of valve is widely used in pipe networks in industrial fields such as sewage treatment plants, water supply systems, chemical plants, etc. It can effectively maintain the normal operation of the pipeline system and improve the reliability and stability of the system.

Features

Product Overview

Sturdy and durable: Made of cast iron, it has high corrosion resistance and pressure bearing capacity.
Filter design: It is equipped with a filter structure that can effectively intercept solid particles in the pipeline and protect the normal operation of the pipeline and equipment.
Good flow performance: Excellent flow performance effectively reduces the pressure loss when the fluid passes through the valve.

product_overview_r
product_overview_r

Technical Requirement

· Flange dimenions conform to EN1092-2 PN10.
· Inspection to EN12266-1.
· Mesh size: 5mm square for DN40-65, 8mm square for DN80-DN400 with 4mm between each two holes.

Specification

PART NAME MATERIAL
Lifting lug Steel
Cover Cast Iron
Gasket NBR
Body Cast Iron
Screen Stainless Steel
Bolts Stainless Steel
Drain plug Brass

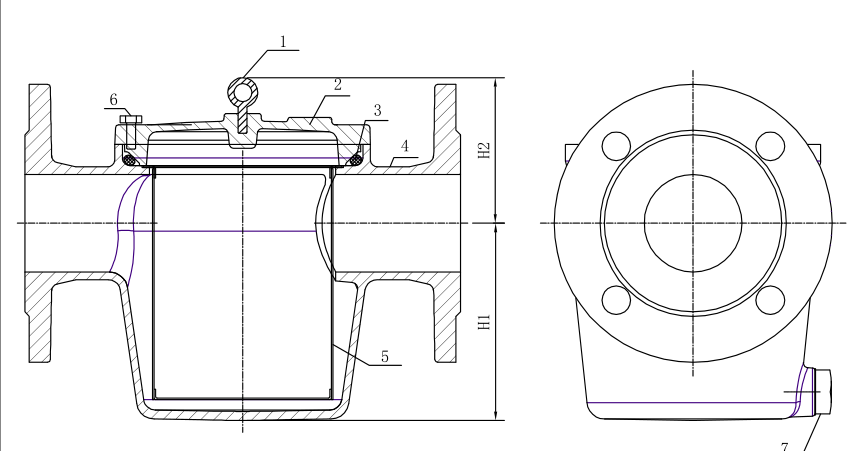

Product wireframe

Dimensions Data

DN L Dg Dk D f b n-d H1 H2
DN40 200 84 110 150 3 19 4-8 107 113
DN50 230 99 125 165 3 19 4-8 115 123
DN65 290 118 145 185 3 19 4-8 138 132
DN80 310 132 160 200 3 19 8-8 151 140
DN100 350 156 180 220 3 19 8-8 182 150
DN125 400 184 210 250 3 19 8-8 239 160
DN150 480 211 240 285 3 19 8-8 257 185
DN200 600 266 295 340 3 20 8-8 333 227
DN250 600 319 350 395 3 22 12-22 330 284
DN300 600 370 400 445 4 24.5 12-22 350 315
DN350 610 429 460 505 4 24.5 16-22 334 341
DN400 740 480 515 565 4 24.5 16-28 381 376
