PN40 SS316 Disco Check Valve
CHV501-PN40
Product Description
PN40 SS316 is a thin single piece check valve made of stainless steel material with a rated pressure of PN40. This valve is mainly used in liquid pipeline systems to prevent fluid backflow and is suitable for pipeline systems in industries such as chemical, petroleum, and pharmaceuticals.
Features
Product Overview
Corrosion resistance and high-pressure use.
It has a simple structure, reliable operation, and is also very convenient for maintenance
The disc of a lift check valve is usually in the shape of a disc, which usually rotates around the center of the valve seat. Because it moves vertically along the centerline of the valve body during operation, it forms a streamline in the internal channels of the valve, resulting in very low flow resistance.
Technical Requirement
· Working pressure: 4.0MPa
· Working temperature: -100℃~400℃
· Face to face: DIN3202 K4
· Flange standard: EN1092-2
· Testing: DIN3230, API598
· Medium: Fresh water, sea water, food, all kinds of oil, acid, alkaline etc.
Specification
| PART NAME | MATERIAL |
| DISC | SS316/SS304 |
| BODY | SS316/SS304/Brass |
| Bolts | SS316 |
| Spring cover | SS316 |
| Spring | SS316 |

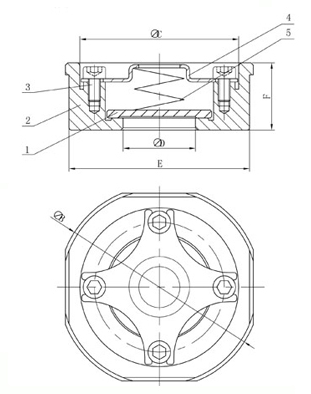

Product wireframe
Dimensions Data
| DN (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| ΦD (mm) | 53 | 63 | 73 | 84 | 94 | 107 | 126 | 144 | 164 |
| ΦE (mm) | 15 | 20 | 25 | 30 | 38 | 47 | 62 | 77 | 95 |
| L (mm) | 16 | 19 | 22 | 28 | 31.5 | 40 | 46 | 50 | 60 |
