ANSI 150 Cast Steel Basket Strainer Flange end

STR702

Standard: API598, EN12266-1, ANSIB16.34

Size: DN25~DN1000mm (1″-40″)

Pressure: PN10-25, CLASS150-300

Suitable Mediums: water, oil, gas, steam

Body material: Carbon Steel A216 WCB/A105, Stainless steel

Type: basket.

Send email to us

Product Detail

Product Tags

Product Description

“ANSI 150 Cast Steel Basket Strainer Flange end” is a common pipe filter.

Introduce: This filter is manufactured to ANSI 150 cast steel standards and usually has flanged connections for easy installation in piping systems. It filters media through a basket-shaped filter, effectively capturing solid impurities and protecting equipment in the pipeline system.

Advantage:

High-efficiency filtration: The design of the basket-shaped filter can efficiently filter out impurities in the pipeline medium and protect valves, pumps and other equipment in the pipeline system.
Corrosion resistance: Made of cast steel or stainless steel, it has good corrosion resistance and is suitable for filtration of a variety of media.
Easy to install: It has a flange interface, easy to install and disassemble, and easy to maintain and clean.

Features

Product Overview

Durable material: Made of cast steel, optional stainless steel, with strong corrosion resistance and high pressure resistance.
Basket filter: Basket-shaped design has a large filtering area and can capture more solid impurities.
Flange interface: It has flange connection for easy installation and maintenance.

Technical Requirement

Usage: This kind of filter is usually used in pipeline systems in petrochemical, pharmaceutical, papermaking, food processing and other industries to filter solid particles and impurities in various media to protect equipment in the pipeline system and ensure the purity of media circulation.

Specification

PART NAME	MATERIAL
Body	SS316 SS304 WCB LCB
Screen	SS316 SS304
Bonnet	SS316 SS304 WCB LCB
Bolt	SS316 SS304
Nut	SS316 SS304
Gasket	Graphite+SS304
Plug	SS316 SS304

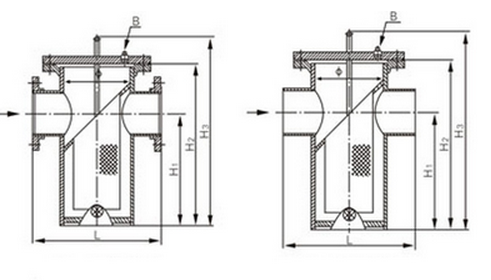

Product wireframe

Basket strainers are generally used with liquids and where regular or frequent cleaning is needed. Basket strainers hold considerably more material than Y strainers and they offer a lower pressure drop. A basket strainer is installed upright and the basket is lifted out from the top. This makes it easier to use with gummy or sticky fluids or with large pipeline sizes where the filled basket weight can be considerable. However, unlike a Y strainer, it also means that a basket strainer has to be installed in a horizontal line. A simplex basket strainer is used where the line can be shut down for short periods to clean or change the basket. It becomes an integral part of the pipeline and all flow passes through it.

Dimensions Data

DN	φ	L	H1	H2	H3	B	m^2	Multriple	kg
25	89	220	160	260	360		0.003619	6.0	15.7/13.8
32	89	220	165	270	370		0.003619	4.5	19.2/16.5
40	114	280	180	300	400	R 1/2″	0.005718	4.5	23.6/19
50	114	280	180	300	400		0.005718	3.0	28.9/23
65	140	330	220	350	460		0.009613	3.0	48.4/39
80	168	340	260	400	510		0.01539	3.0	65.3/53
100	219	420	310	470	580		0.02464	3.0	89.3/76
150	273	500	430	620	730		0.04866	3.0	148/126
200	325	560	530	780	900	R 3/4″	0.07858	2.5	185/158
250	426	660	640	930	1050		0.12005	2.5	230/195
300	478	750	840	1200	1350		0.16537	2.3	307/260
