Class 150 bronze 5K 10K gate valves open close indicator
NO.97
Product Description
IFLOW Bronze 5K 10K Gate Valve with On/Off Indicator, a trusted choice for marine applications. Designed to meet the specific needs of the marine environment, these gate valves offer a range of advantages that make them an important component of marine systems. Constructed from a sturdy bronze material, these gate valves are corrosion-resistant and able to withstand the harsh conditions found in marine environments, such as salt water exposure and extreme weather.
Adding an opening and closing indicator can visually confirm the position of the valve, thereby improving operating efficiency and safety. Available in pressure ratings of 5K and 10K, these valves are versatile and reliable, ensuring precise flow control and reliable operation in a variety of marine applications. Its rugged construction and compliance with industry standards make it a durable and trustworthy choice for offshore installations.
IFLOW Bronze 5K 10K Gate Valves feature open and closed indicators for enhanced visibility and control, making them an ideal solution for marine applications, offering durability, reliability and ease of use. Relying on these valves helps your ship’s systems operate efficiently and safely, providing peace of mind and performance when it matters most.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· DESIGN STANDARD
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY:2.1br />
· SEAT:1.54-0.4
Specification
| HANDWHEEL | FC200 |
| GASKET | TEFLON |
| STEM | C3771BD OR BE |
| DISC | BC6 |
| BONNET | BC6 |
| BODY | BC6 |
| NAME OF PART | MATERIAL |

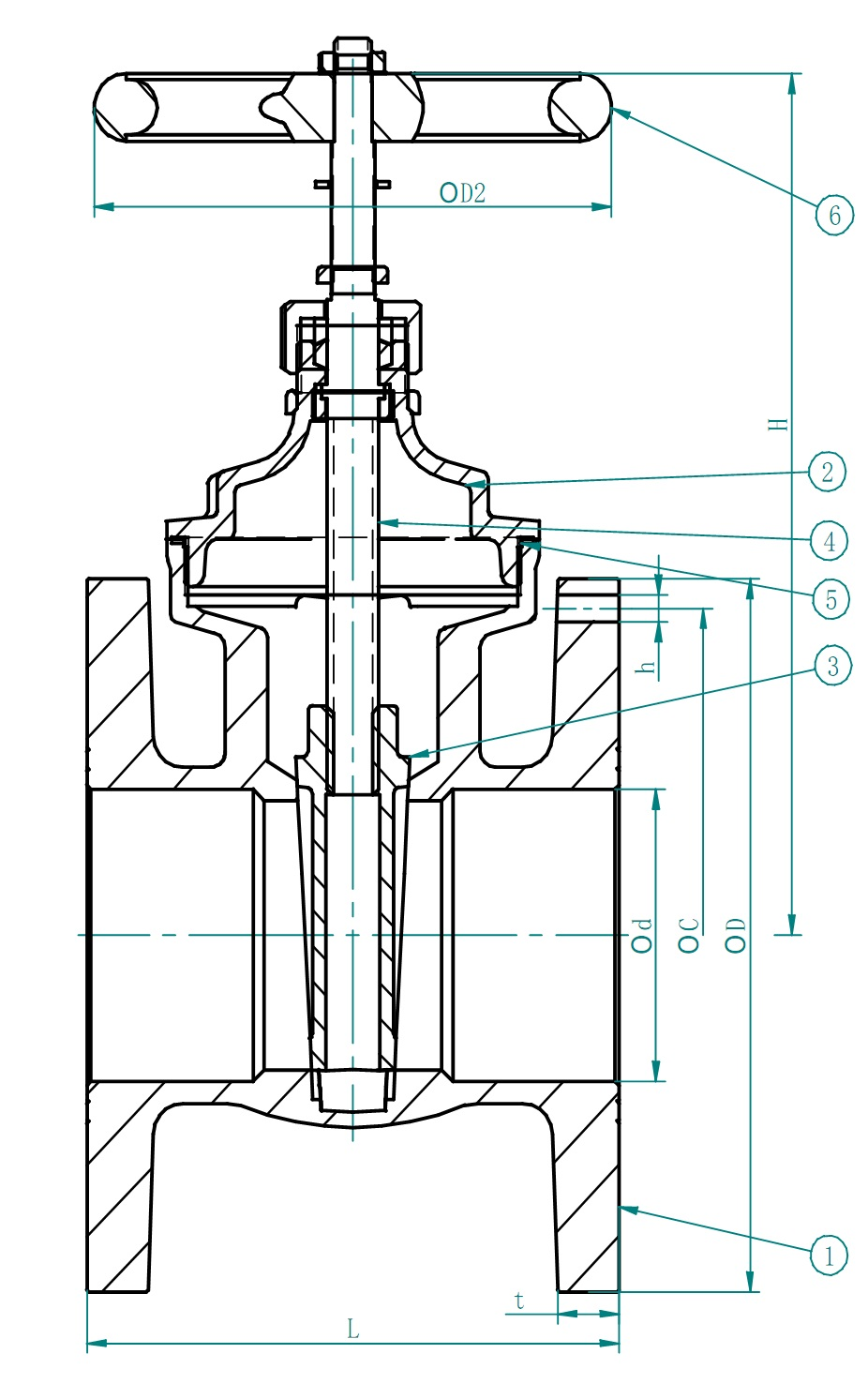

Product wireframe
Dimensions Data
| DN | d | L | D | C | NO. | h | t | H | D2 |
| 15 | 20 | 80 | 95 | 70 | 4 | 12 | 9 | 109 | 80 |
| 20 | 25 | 80 | 100 | 75 | 4 | 15 | 9 | 110 | 80 |
| 25 | 25 | 80 | 125 | 90 | 4 | 19 | 9 | 110 | 80 |
| 32 | 39 | 101 | 135 | 100 | 4 | 19 | 11 | 142 | 100 |
| 40 | 39 | 101 | 140 | 105 | 4 | 19 | 11 | 142 | 100 |
| 50 | 50 | 116 | 155 | 120 | 4 | 19 | 12 | 167 | 125 |
| 65 | 62 | 128 | 175 | 140 | 4 | 19 | 13 | 195 | 125 |
| 80 | 74 | 144 | 185 | 150 | 8 | 19 | 15 | 218 | 140 |
| 100 | 100 | 166 | 210 | 175 | 8 | 19 | 15 | 271 | 180 |
