JIS F 7309 Cast iron 16K globe valve

NO.112

Standard: JIS F7301, 7302, 7303, 7304, 7351, 7352, 7409, 7410

Pressure：5K, 10K，16K

Size:DN15-DN300

Material：cast iron, cast steel, forged steel, brass, bronze

Type:globe valve, angle valve,

Media: Water, Oil, Steam


Product Detail

Product Tags

Product Description

Global valve straight pattern is made of genuine metal materials,  ensuring product durability. These values are a perfect fit for flow regulation as it has the ability to handle a big amount of fluid pressure without cracks. The straight pattern globe valve consists of various parts.

They include: Body, Bonnet, Stem, Yoke, Gland bushing and flange, Seat ring, Yoke sleeve, Handwheel, Back seat, Pressure seal gasket.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7309-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 300 OR LESS:3.3
· SEAT: 300 OR LESS:2.42

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
PACKING GLAND BC6
STEM C3771BD OR BE
VALVE SEAT BC6
DISC BC6
BONNET FC200
BODY FC200
NAME OF PART MATERIAL

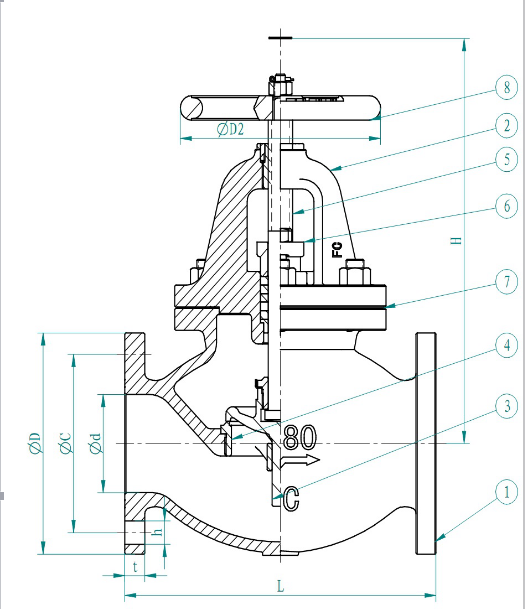

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
50 50 220 155 120 8 19 20 285 160
65 65 270 175 140 8 19 22 310 200
80 80 300 200 160 8 23 24 340 224
100 100 350 225 185 8 23 26 385 250
125 125 430 270 225 8 25 26 455 315
150 150 500 305 260 12 25 28 510 355
200 200 570 350 305 12 25 30 630 450
