BS5152 PN16 Cast Iron Globe Valve


Standard:DIN3356/BS5152/MSS SP-85



Pressure:CLASS 125-300/PN10-40/200-600PSI

Material:CI, DI, CS

Driving mode:handwheel, bevel gear, gear

Product Detail

Product Tags

Product Description

Globe Valves are used for throttling flow control.  A globe valve should be selected when the desired outcome is to reduce the pressure of media in a piping system.

The flow pattern through a globe valve involves changes in direction, resulting in greater flow restriction, and a large pressure drop, as media moves through the valve internals.Shut-off is accomplished by moving the disc against the fluid, rather than across it.  This reduces wear & tear on the closure.

As the disc moves towards fully closed, the pressure of the fluid is restricted to the desired pressure needed for the piping system.  Globe valves, unlike many other valve designs, are built to operate in extreme conditions caused when restricting fluid movement.


Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.


Technical Requirement

· Design and Manufacture Conform to BS EN 13789、BS5152
· Flange dimensions Conform to EN1092-2
· Face to Face dimensions Conform to BS5152、EN558-1 list 10
· Testing Conform to EN12266-1


Part Name Material
Body EN-GJL-250
Seat ZCuSn5Pb5Zn5
Disc Seal Ring ZCuSn5Pb5Zn5
Disc EN-GJL-250
Lock Ring Red Copper
Disc Cover HPb59-1
Stem HPb59-1
Bonnet EN-GJL-250
Stem Nut ZCuZn38Mn2Pb2
Handwheel EN-GJS-500-7

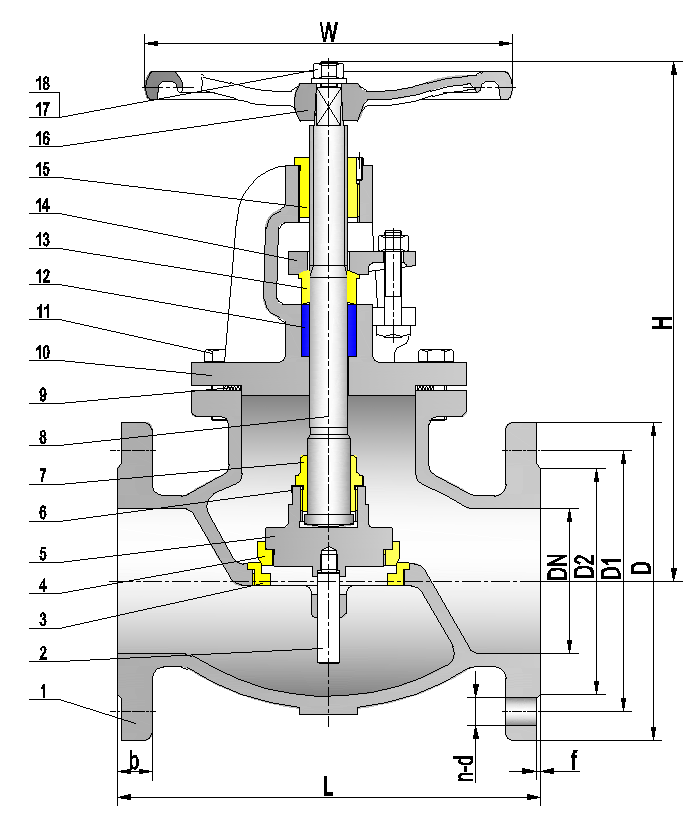

Product wireframe

Globe valves are linear motion valves with rounded globular shaped bodies. Since their shape is similar to other valve bodies, positive identification must be made based on internal piping. Recently globe valves have lost their traditional round body-shape. Globe valves have many advantages and disadvantages for users. They have excellent and precise throttling ability for high-pressure systems. The disadvantages include low-flow coefficients and a longer operating time because the operator must turn the handle and stem many times to ensure the valve is completely open or completely closed. Globe valves can be used in systems that require frequent stroking, vacuum, and systems that have a wide range of temperature extremes. Globe valves use a linear motion disk and function to start, stop, and throttle fluid flow.

Dimensions Data

DN 50 65 80 100 125 150 200 250 300
L 203 216 241 292 330 356 495 622 698
D 165 185 200 220 250 285 340 405 460
D1 125 145 160 180 210 240 295 355 410
D2 99 118 132 156 184 211 266 319 370
b 20 20 22 24 26 26 30 32 32
n-d 4-19 4-19 8-19 8-19 8-19 8-23 12-23 12-28 12-28
f 3 3 3 3 3 3 3 3 4
H 273 295 314.4 359 388 454 506 584 690
W 200 200 255 255 306 360 360 406 406
