JIS F 7352 Bronze 5K screw-down check angle valves
NO.121
Features
Product Overview
The angle globe valve is constructed sturdily using high-quality metals, like bronze, brass, and stainless steel, ensuring malleability and corrosion resistance. It usually requires temperatures ranging from 250°C to 450°C to work for cryogenic applications. The angle seat globe valve is designed to be firmly in place with an angle seat.
Technical Requirement
· DESIGN STANDARD:JIS F 7352-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 1.05br />
· SEAT: 0.77-0.4br />
Specification
| HANDWHEEL | FC200 |
| STEM | C3771BD OR BE |
| DISC | BC6 |
| BONNET | BC6 |
| BODY | BC6 |
| NAME OF PART | MATERIAL |

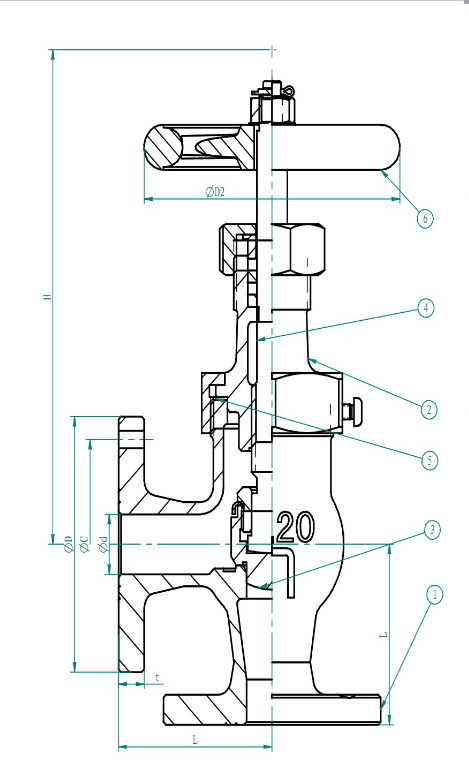

Product wireframe
Dimensions Data
| DN | d | L | D | C | NO. | h | t | H | D2 |
| 15 | 15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
| 20 | 20 | 60 | 85 | 65 | 4 | 12 | 10 | 125 | 100 |
| 25 | 25 | 65 | 95 | 75 | 4 | 12 | 10 | 140 | 125 |
| 32 | 32 | 80 | 115 | 90 | 4 | 15 | 12 | 145 | 125 |
| 40 | 40 | 85 | 120 | 95 | 4 | 15 | 12 | 160 | 140 |
| 50 | 50 | 100 | 130 | 105 | 4 | 15 | 14 | 197 | 140 |
| 65 | 65 | 115 | 155 | 130 | 4 | 15 | 14 | 209 | 160 |
