JIS F7301 Bronze 5K globe valve Featured Image
  • JIS F7301 Bronze 5K globe valve
  • JIS F7301 Bronze 5K globe valve
  • JIS F7301 Bronze 5K globe valve

JIS F7301 Bronze 5K globe valve

F7301

Pressure: 5K

 Size: DN15-DN300

 Material: Brass, bronze

 Type: Globe valve

 Media: Water, Oil, Steam


Product Detail

Product Tags

Product Description

The JIS F7301 Bronze 5K globe valve is a preferred choice in the maritime industry due to its exceptional corrosion resistance and durability. Its construction from high-quality bronze ensures reliable performance in marine environments where exposure to seawater and harsh conditions is common. With a 5K pressure rating, this globe valve is suitable for handling moderate pressure applications on ships and marine vessels. Its globe valve design allows for precise flow control and regulation, making it ideal for various onboard systems such as water, steam, and fuel management.

The JIS F7301 offers a reliable solution for fluid control needs, contributing to the safe and efficient operation of marine systems. Its robust construction and resilient materials make it a valuable asset in maritime applications, ensuring longevity and consistent performance even in demanding shipboard environments.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· Flange dimensions conform to EN1092-2 PN16
· Face to face dimensions conform to BS5163
· Testing conform to BS516, 3EN12266-1
· Driving mode: Hand wheel, square cover

Specification

HANDWHEEL FC200
STEM C3771BD OR BE
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

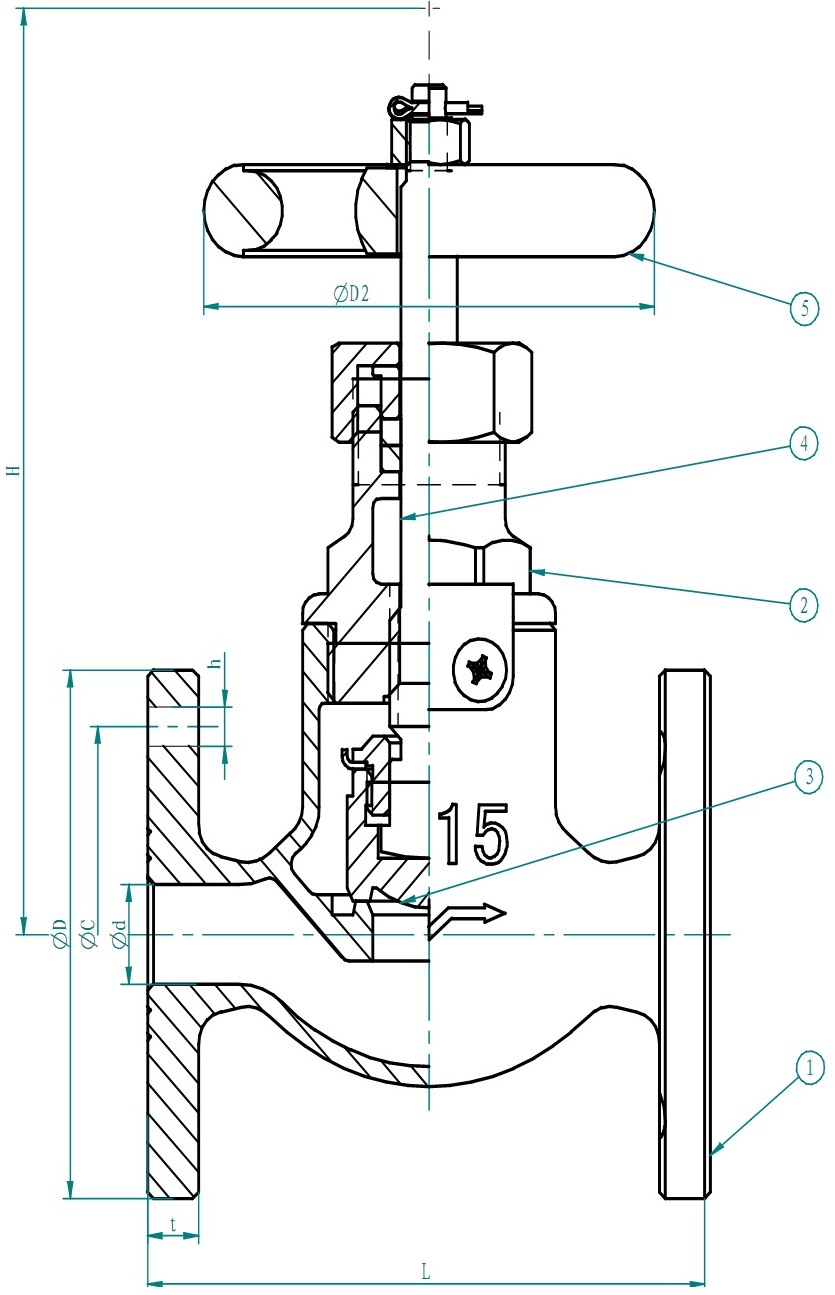

Product wireframe

Dimensions Data

DN D L D C NO. H T H D2
15 15 100 80 60 4 12 9 130 80
20 20 110 85 65 4 12 10 140 100
25 25 120 95 75 4 12 10 160 125
32 32 140 115 90 4 15 12 170 125
40 40 160 120 95 4 15 12 190 140
