JIS F7209 Shipbuilding-Simplex oil strainer
NO.104
Product Description
JIS F7209 Shipbuilding-Simplex oil strainer is a simple oil filter used in shipbuilding with the following features, advantages and uses:
Introduce: JIS F7209 Shipbuilding-Simplex oil strainer is a Japanese Industrial Standard (JIS) compliant simple oil strainer for use in shipbuilding and marine systems. It is usually designed as a single-cylinder structure and is used to filter ship lubricating oil, diesel or other marine oil products to ensure smooth operation of the system.
Advantage:
Improve system reliability: By filtering ship oil, component wear and failure can be reduced, and system reliability and stability can be improved.
Protection equipment: Effectively filter impurities and solid particles to protect the ship’s oil system and related equipment.
Comply with standards: Comply with JIS standards to ensure that product quality and performance comply with relevant navigation standards.
Usage: JIS F7209 Shipbuilding-Simplex oil strainer is mainly used in shipbuilding and marine systems to filter the ship’s lubricating oil, fuel oil or other marine oil products. This filter can be widely used in various types of ships, including commercial ships, naval ships and fishing boats, etc., to ensure the normal operation of marine systems and ensure the safety and stability of related equipment.
Features
Product Overview
Marine design: JIS F7209 oil filter is specially designed for marine systems and complies with relevant navigation standards and regulations.
Single-tube structure: Usually a single-tube structure is used, which is easy to install and takes up less space.
Corrosion resistance: Usually made of corrosion-resistant materials to adapt to the corrosive nature of the marine environment.
Technical Requirement
· DESIGN STANDARD:JIS F 7203-1996
· TEST: JIS F 7209-1996
· TEST PRESSURE/MPA
· BODY: 0.74br />
Specification
| O-RING | 1 |
| STRAINER | SS400(SUS 304) |
| COVER PUSH | FCD400 |
| BONNET | FC200 |
| BODY | FC200 |
| NAME OF PART | MATERIAL |

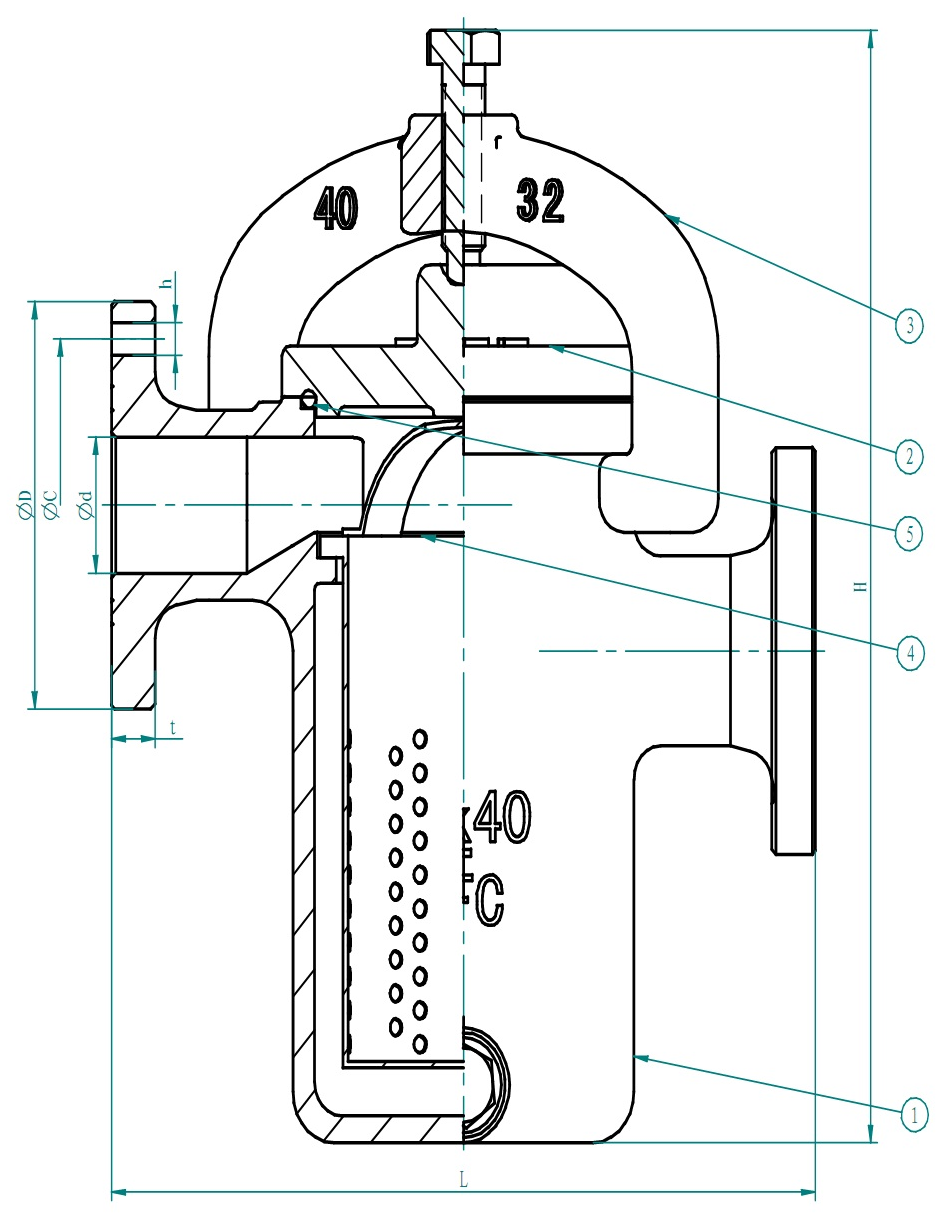

Product wireframe
Dimensions Data
| DN | D | L | D | C | NO. | H | T | H |
| 5K20 | 25 | 190 | 85 | 65 | 4 | 12 | 14 | 240 |
| 5K25 | 25 | 190 | 95 | 75 | 4 | 12 | 14 | 240 |
| 10K25 | 25 | 190 | 125 | 90 | 4 | 19 | 18 | 240 |
| 5K32 | 32 | 260 | 115 | 90 | 4 | 15 | 16 | 328 |
| 10K32 | 32 | 260 | 135 | 100 | 4 | 19 | 20 | 328 |
| 5K40 | 40 | 260 | 120 | 95 | 4 | 15 | 16 | 328 |
| 10K40 | 40 | 260 | 140 | 105 | 4 | 19 | 20 | 328 |
