DIN PN16 Ductile Iron Basket Strainer


Working Pressure:16bar for size DN50 to DN600,25bar for size DN50 to DN300

Working temperature:-10℃~120℃

Corrosion Protection:Internally and externally liquid epoxy painted, or fusion bonded epoxy powder coated (FBE).

Product Detail

Product Tags

Product Description

DIN PN16 ductile iron filter screen is a fluid equipment with the following features, advantages and uses:

Introduce: DIN PN16 ductile iron filter screen is a pipe filter that complies with German Industrial Standards (DIN). It is made of ductile iron (Ductile Iron) and has a working pressure level of PN16, which is suitable for medium pressure environments.


Durability: Ductile iron has good corrosion resistance and pressure resistance, ensuring long-term stable operation of the product in harsh environments.
High-efficiency filtration: The basket screen filter design is conducive to effective filtration of impurities in the media, ensuring the cleanliness of the pipeline system and the protection of the equipment.
Comply with standards: Comply with German industrial standards, indicating that the product quality is reliable and meets industrial specifications.

Usage: DIN PN16 ductile iron filter screen is mainly used in pipeline systems to filter solid particles and impurities in the media to protect valves, pumps and other equipment in the pipeline system from damage and ensure the stable operation of the system. This type of filter is usually widely used in industrial production, water supply systems, chemical plants and other occasions where media needs to be filtered and purified.


Product Overview

Ductile iron manufacturing: Ductile iron has high strength and corrosion resistance, is suitable for a variety of media, and has a long service life.
Basket screen design: The basket screen filter design can effectively intercept solid particles and impurities to ensure smooth pipeline systems.
DIN standard: It complies with German industrial standards, indicating that the product has a certain quality and performance guarantee.


Technical Requirement

· NPT or BSPT blowoff outlet on body. Blowoff outlets are finished with plugs
· Screens are perforated 304 stainless steel with spot welded seam.
· Available with flange EN1092-2 PN16/PN25, ANSI B16.1 Class125 or ANSI B16.2 Class250 (other types available on request).


Body GG25/GGG40
Cover GG25/GGG40
Screen Stainless steel 304
Gasket Teflon/Graphite
Plug GG25/GGG40

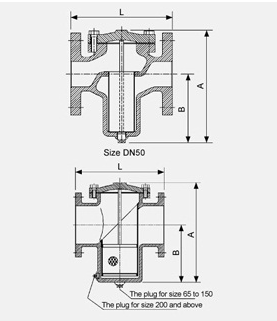

Product wireframe

Dimensions Data

Size 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L 207 210 251 292 334 378 475 511 680 769 842 842 842 1054
A 255 250 297 330 370 410 530 615 770 925 972 1010 1110 1690
B 128 155 190 202 218 243 305 335 425 585 590 543 600 1175
Plug 1/2“ 3/4” 3/4“ 1” 1“ 1” 1-1/2“ 1-1/2” 2“ 2” 2“ 2” 2“ 2”
Weight (kg) 11 19 21 30 43 58 100 151 270 470 500 645 850 1250
