EN 593 PN10/PN16/ U TYPE FLANGE BUTTERFLY VALVE
BFV307
Product Description
The IFLOW EN 593 PN16 U-type flange butterfly valve is a precision designed valve commonly used in industrial piping systems. Its main structural features include being made of high-strength cast iron or stainless steel, suitable for medium and low pressure environments, and flange connection design for easy installation and maintenance. The valve uses high-quality sealing materials to ensure that the valve has good sealing performance in the closed state and effectively controls the flow of liquid or gas in the pipeline system. The operation of the butterfly valve is simple and flexible. The flow of the medium can be easily controlled by rotating the valve disc. At the same time, the structural design of the valve ensures that the resistance of the fluid can be reduced and energy consumption can be reduced. In general, IFLOW EN 593 PN16 U-type flange butterfly valve is widely used in industrial piping systems due to its good sealing performance, simple operation and reliable structural design.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Design and Manufacture Conform to EN593
· Flange dimensions Conform to EN1092-2/ANSI B16.1
· Face to Face dimensions Conform to EN558-1
· Testing Conform to EN12266-1
· Driving mode: lever, worm actuator, electric, pheumatic
Specification
| Part Name | Material |
| Body | DI |
| O Ring | NBR |
| Bushing | PTFE |
| Pin | ASTM A276 416 |
| Shaft | ASTM A276 416 |
| Disc | Plated Ductile Iron |
| Seat | NBR |

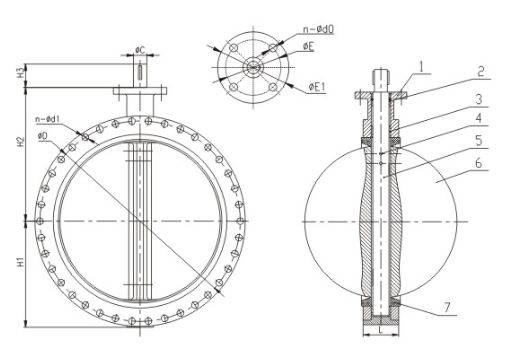

Product wireframe
Dimensions Data
| SIZE | L | EN 1092-2 PN10 | EN 1092-2 PN16 | H1 | H2 | H3 | ΦC | ΦE1 | ΦE | n-Φd0 | ||
| ΦD | n-Φd1 | ΦD | n-Φd1 | |||||||||
| DN100 | 52 | 180 | 8-Φ19 | 180 | 8-Φ19 | 110 | 200 | 32 | 16 | 90 | 70 | 4-10 |
| DN125 | 56 | 210 | 8-Φ19 | 210 | 8-Φ19 | 125 | 213 | 32 | 19 | 90 | 70 | 4-10 |
| DN150 | 56 | 240 | 8-Φ23 | 240 | 8-Φ23 | 143 | 226 | 32 | 19 | 90 | 70 | 4-10 |
| DN200 | 60 | 295 | 8-Φ23 | 295 | 12-Φ23 | 170 | 260 | 37 | 22 | 125 | 102 | 4-12 |
| DN250 | 68 | 350 | 12-Φ23 | 355 | 12-Φ28 | 203 | 292 | 37 | 28 | 125 | 102 | 4-12 |
| DN300 | 78 | 400 | 12-Φ23 | 410 | 12-Φ28 | 242 | 337 | 37 | 32 | 125 | 102 | 4-12 |
| DN350 | 78 | 460 | 16-Φ23 | 470 | 16-Φ28 | 267 | 368 | 45 | 32 | 125 | 102 | 4-12 |
| DN400 | 102 | 515 | 16-Φ28 | 525 | 16-Φ31 | 297 | 400 | 51 | 33 | 175 | 140 | 4-18 |
| DN450 | 114 | 565 | 20-Φ28 | 585 | 20-Φ31 | 318 | 422 | 51 | 38 | 175 | 140 | 4-18 |
| DN500 | 127 | 620 | 20-Φ28 | 650 | 20-Φ34 | 348 | 480 | 64 | 41 | 175 | 140 | 4-18 |
| DN600 | 154 | 725 | 20-Φ31 | 770 | 20-Φ37 | 444 | 562 | 70 | 51 | 210 | 165 | 4-22 |
| DN700 | 165 | 840 | 24-Φ31 | 840 | 24-Φ37 | 505 | 624 | 66 | 63 | 300 | 254 | 8-18 |
| DN800 | 190 | 950 | 24-Φ34 | 950 | 24-Φ41 | 565 | 672 | 66 | 63 | 300 | 254 | 8-18 |
| DN900 | 203 | 1050 | 28-Φ34 | 1050 | 28-Φ41 | 637 | 720 | 118 | 75 | 300 | 254 | 8-18 |
| DN1000 | 216 | 1160 | 28-Φ37 | 1170 | 28-Φ44 | 700 | 800 | 142 | 85 | 300 | 254 | 8-18 |
| DN1200 | 254 | 1380 | 32-Φ41 | 1390 | 32-Φ50 | 844 | 940 | 160 | 105 | 350 | 298 | 8-22 |
