AWWA C504 Class 125 Butterfly Valve
BFV201-150
Product Description
The IFLOW AWWA C504 Class 125 Butterfly Valve is a rugged valve designed to regulate the flow of water and other non-corrosive liquids in a variety of industrial, municipal and water supply applications. The valve is specifically designed to meet standards set by the American Water Works Association (AWWA) for use in water treatment plants, distribution systems and wastewater treatment facilities.
The Class 125 designation indicates that this butterfly valve is designed to handle pressures up to 125 psi, making it suitable for low pressure applications in water systems. Its butterfly design controls fluid flow quickly and efficiently, allowing operators to open, close, or adjust valves to regulate water flow in pipes.
With its durable construction and reliable performance, the IFLOW AWWA C504 Class 125 Butterfly Valve is ideally suited for use in water distribution networks, pumping stations and treatment facilities where precise control of water flow is a must. Additionally, it complies with AWWA standards to ensure industry requirements for safety, reliability and performance in water system applications are met.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Design and Manufacture Conform to AWWA C504
· NBR: 0℃~80℃
· Flange dimensions Conform to ANSI B16.1 CLASS 125
· Face to Face dimensions Conform to AWWA C504 Short Body
· Testing Conform to AWWA C504
· Driving mode: lever, worm actuator, electric, pheumatic.
Specification
| Part Name | Material |
| Body | ASTM A126 CLASS B |
| Seat | NBR |
| Disc | Plated Ductile Iron |
| Middle Bearing | F4 |
| Shaft | ASTM A276 416 |
| Upper Bearing | F4 |
| O Ring | NBR |
| Retaining Ring | Carbon Steel |
| Pin | ASTM A276 416 |
| Plug | Malleable Iron |

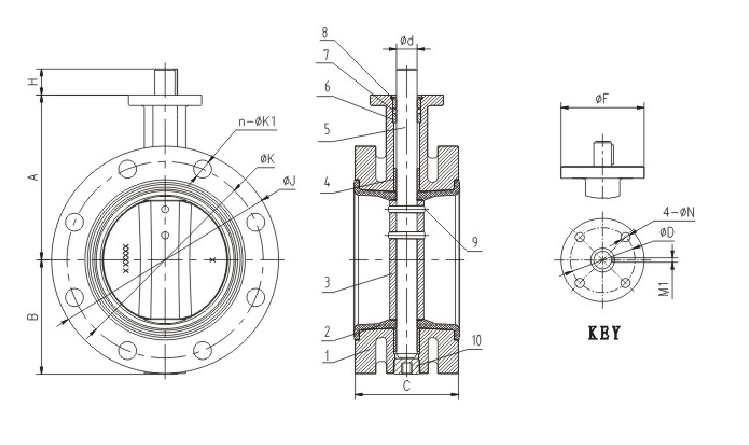

Product wireframe
Dimensions Data
| Size | A | B | C | ΦF | ΦD | 4-ΦN | Φd | H | M1 | ANSI 150 | ||
| ΦJ | Φk | n-Φk1 | ||||||||||
| 3″ | 146 | 89 | 127 | 90 | 70 | 10 | 12.7 | 32 | 3.18 | 191 | 152.5 | 4-19 |
| 4″ | 177 | 112 | 127 | 90 | 70 | 10 | 15.9 | 32 | 4.78 | 229 | 190.5 | 8-19 |
| 6″ | 203 | 140 | 127 | 90 | 70 | 10 | 25.4 | 32 | 7.94 | 279 | 241.5 | 8-22 |
| 8″ | 235.5 | 170 | 152 | 125 | 102 | 12 | 28.6 | 45 | 7.94 | 343 | 298.5 | 8-22 |
| 10″ | 267 | 200 | 203 | 125 | 102 | 12 | 34.9 | 45 | 12.7 | 406 | 362 | 12-25 |
| 12″ | 312 | 230 | 203 | 150 | 125 | 14 | 38.1 | 45 | 12.7 | 483 | 432 | 12-25 |
| 14″ | 343 | 256 | 203 | 150 | 125 | 14 | 44.5 | 45 | 12.7 | 533 | 476 | 12-29 |
| 16″ | 372 | 299 | 203 | 210 | 165 | 23 | 50.8 | 50 | 12.7 | 597 | 539.5 | 16-29 |
| 18″ | 402 | 327 | 203 | 210 | 165 | 23 | 57.2 | 50 | 15.88 | 635 | 578 | 16-32 |
| 20″ | 437 | 352 | 203 | 210 | 165 | 23 | 63.5 | 60 | 15.88 | 699 | 635 | 20-32 |
| 24″ | 498.5 | 420 | 203 | 210 | 165 | 23 | 76.2 | 70 | 15.88 | 813 | 749.5 | 20-35 |
