Electric actuator motorized butterfly valve Featured Image
  • Electric actuator motorized butterfly valve

Electric actuator motorized butterfly valve

NO.1

size:DN40-DN600;2’’-24’’

Medium:water, sea water

Standard:EN593/AWWA C504/MSS SP-67

Pressure:CLASS 125-300/PN10-25/200-300PSI

Material:CI, DI

Type:wafer type, lug type, double flange type, U type, groove-end


Product Detail

Product Tags

Product Description

IFLOW’s electric actuated electric butterfly valves are an excellent choice for marine applications, offering several key advantages for onboard use. Electric actuators provide precise and reliable valve control to effectively regulate fluid flow on ships. The valve’s durable construction and corrosion-resistant materials make it ideally suited for challenging and corrosive offshore environments, ensuring long-term performance and reliability at sea.

The compact, lightweight design of the valves and actuators allows for easy installation and integration into the ship’s piping system, optimizing space utilization on board the ship. With its high flow rate and reliable shut-off capability, the valve facilitates safe and efficient fluid handling, improving the operational safety and reliability of offshore fluid control systems. Electric actuators do not require a pneumatic power source, providing a more versatile and flexible solution for marine applications.

Overall, IFLOW electric actuator electric butterfly valves are a trustworthy and efficient choice for marine applications, providing the necessary fluid control functions for safe and reliable offshore operations.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r

Specification

Part Name Material
Body DI
Down Bearing F4
Seat NBR
Disc Plated Ductile Iron
Shaft ASTM A276 416
Middle Bearing F4
Upper Bearing F4
O Ring NBR

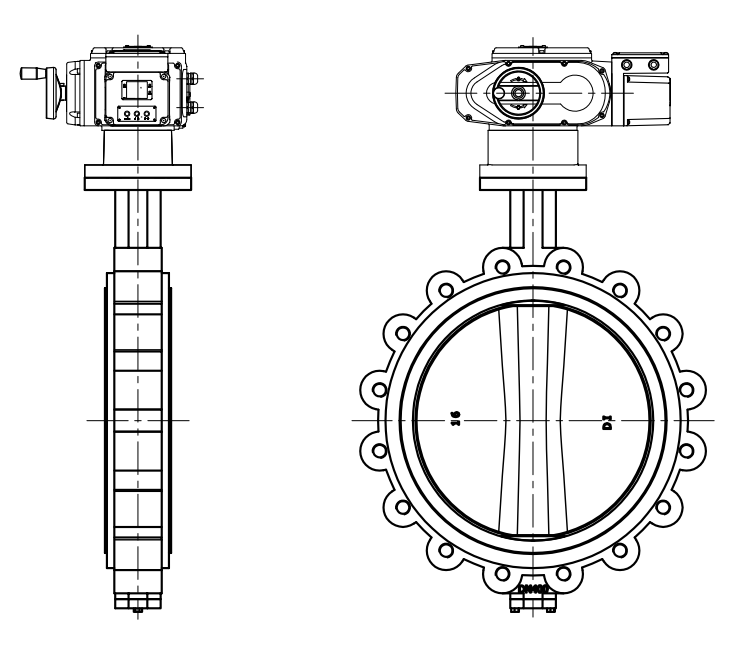

Product wireframe

Butterfly valves are a family of quarter-turn rotational motion valves that are used in pipelines to shut-off flow. It is often said that butterfly valves can be used to regulate the flow. However, we do not recommend doing this, as it can damage the valve disk and have a negative effect on the sealing properties. They are used in a wide variety of process media and industries especially in water supply, collection, and distribution, as well as pumping stations, and have a broad range of use cases especially in flow isolation. A couple of their key advantages over other valve families are their simple construction and compactness, resulting in the end products being of lighter weights and lower cost and with smaller installation footprints and faster actuation speeds.

Dimensions Data

DN A B C H ΦE ΦF N-ΦK Φd G EN1092-2 PN10 EN1092-2 PN16 ANSI CLASS 125
ΦD n-Φd1 n-M ΦD n-Φd1 n-M ΦD n-Φd1 n-M
DN40 120 (140) 75 33 32 90 50 4-Φ7 12.6 9.5 110 4-Φ19 4-M16 110 4-Φ19 4-M16 98.5 4-Φ16 4-1/2″
DN50 124 (161) 80 43 32 90 50 4-Φ7 12.6 9.5 125 4-Φ19 4-M16 125 4-Φ19 4-M16 120.5 4-Φ19 4-5/8″
DN65 134 (175) 89 46 32 90 50 4-Φ7 12.6 9.5 145 4-Φ19 4-M16 145 4-Φ19 4-M16 139.5 4-Φ19 4-5/8″
DN80 141 (181) 95 46 32 90 50 4-Φ7 12.6 9.5 160 8-Φ19 8-M16 160 8-Φ19 8-M16 152.5 4-Φ19 4-5/8″
DN100 156 (200) 114 52 32 90 70 4-Φ10 15.8 11.1 180 8-Φ19 8-M16 180 8-Φ19 8-M16 190.5 8-Φ19 8-5/8″
DN125 168 (213) 127 56 32 90 70 4-Φ10 18.92 12.7 210 8-Φ19 8-M16 210 8-Φ19 8-M16 216 8-Φ22 8-3/4″
DN150 184 (226) 140 56 32 90 70 4-Φ10 18.92 12.7 240 8-Φ23 8-M20 240 8-Φ23 8-M20 241.5 8-Φ22 8-3/4″
DN200 213 (260) 175 60 45 125 102 4-Φ12 22.1 15.9 295 8-Φ23 8-M20 295 12-Φ23 12-M20 298.5 8-Φ22 8-3/4″
DN250 244 (292) 220 68 45 125 102 4-Φ12 28.45 22 350 12-Φ23 12-M20 355 12-Φ28 12-M24 362 12-Φ25 12-7/8″
DN300 283 (337) 255 78 45 150 125 4-Φ14 31.6 24 400 12-Φ23 12-M20 410 12-Φ28 12-M24 432 12-Φ25 12-7/8″
DN350 368 267 78 45 150 125 4-Φ14 31.6 24 460 16-Φ23 16-M20 470 16-Φ28 16-M24 476 12-Φ29 12-1″
DN400 400 323 102 50 150 125 4-Φ14 33.15 27 515 16-Φ28 16-M24 525 16-Φ31 16-M27 539.5 16-Φ29 16-1″
DN450 422 342 114 50 210 140 4-Φ18 37.95 27 565 20-Φ28 20-M24 585 20-Φ31 20-M27 578 16-Φ32 16-1 1/8″
DN500 479 373 127 60 210 140 4-Φ18 41.12 32 620 20-Φ28 20-M24 650 20-Φ34 20-M31 635 20-Φ32 20-1 1/8″
DN600 562 467 154 70 210 165 4-Φ22 50.62 36 725 20-Φ31 20-M27 770 20-Φ37 20-M33 749.5 20-Φ35 20-1 1/4″
