TRI-Eccentric Butterfly Valve

BFV-709

Standard:API609,EN12266-1

Size : DN50~DN1000mm (2″-40″)

Pressure : PN1.0~10MPa(class150-class600)

Suitable Mediums:water , oil , gas,steam

Body material:Carbon Steel A216 WCB/A105 ,Stainless steel

Type:wafer ,lug


Product Detail

Product Tags

Product Description

The IFLOW triple offset butterfly valve is a precision engineered valve designed for use in industrial piping systems. It features high-strength construction made of cast iron or stainless steel and is suitable for medium and low pressure environments. The valve adopts flange connection design for easy installation and maintenance.

High-quality sealing materials ensure a tight seal when the valve is closed, effectively controlling the flow of liquid or gas within the piping system. The butterfly valve is simple and flexible to operate, and the flow can be easily controlled by rotating the valve disc. In addition, the structural design of the valve reduces fluid resistance, thereby reducing energy consumption. Overall, IFLOW triple eccentric butterfly valve is widely used in industrial pipeline systems for its excellent sealing performance, simple operation and reliable structural design.

The replaceable seat and seal ring system extends the overall service life of each IFLOW valve, thus minimizing downtime without expensive field maintenance or full replacement

Two way zero leakage seal

The unique three eccentric structure makes our valve stable, reliable and easy to maintain

Compared with gate, stop or ball valves of the same size and pressure class, IFLOW butterfly valve saves space and weight, and reduces the installation and maintenance cost to the greatest extent.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9004 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· Design standard:API 609
· Flange standard:ANSI/ASME B16.5a, B16.47(A)
· Pressure and temperature rating conforms to ASME B16.34
· Face to face: ANSI B16.10/API 609
· Pressure test:API598

Specification

PART NAME MATERIAL
BODY WCB、304、316、CF8、CF8M
DISC WCB、304、316、CF8、CF8M
STEM 316、2Cr13、1Cr18Ni9Ti
SEAL RING Fluorine plastic
PACKING Flexible graphite, fluorine plastic

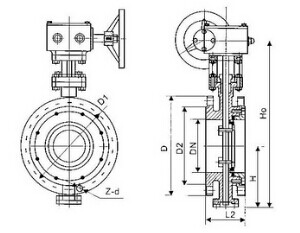

Product wireframe

Dimensions Data

Dimensions data(mm) Class 150

DN
Nominal
diameter		 Face to Face(standand) External Dimension(reference) Connection dimension(standand)
L L1 H H0 D D1 D2 M Z-d
inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm
2″ 50 1.69 43 4.25 108 4.33 110 13.58 345 6.00 152 4.75 120.5 3.62 92 M16 4-18
2.1/2″ 65 1.81 46 4.40 112 4.64 118 14.25 362 7.00 178 5.50 139.5 4.13 105 M16 4-18
3″ 80 1.88 48 4.50 114 4.92 125 14.96 380 7.50 190 6.00 152.5 5.00 127 M16 4-18
4″ 100 2.12 54 5.00 127 5.70 145 16.34 415 9.00 229 7.50 190.5 6.19 157 M16 8-18
5″ 125 2.19 56 5.50 140 6.50 165 17.91 455 10.00 254 8.50 216 7.32 186 M20 8-22
6″ 150 2.25 57 5.50 140 6.89 175 21.45 545 11.00 279 9.50 241.5 8.50 216 M20 8-22
8″ 200 2.50 64 6.00 152 8.26 210 24.21 615 13.50 343 11.75 298.5 10.62 270 M20 8-22
10″ 250 2.81 71 6.50 165 9.84 250 27.36 695 16.00 406 14.25 362 12.75 324 M24 12-26
12″ 300 3.19 81 7.00 178 11.24 285 32.78 830 19.00 483 17.00 432 15.00 381 M24 12-26
14″ 350 3.62 92 7.50 190 12.60 320 35.43 900 21.00 533 18.75 476 16.25 413 M27 12-30
16″ 400 4.00 102 8.50 216 13.98 355 38.58 980 23.50 597 21.25 540 18.50 470 M27 16-30
18″ 450 4.50 114 8.75 222 14.96 380 40.55 1030 25.00 635 22.75 578 21.00 533 M30 16-33
20″ 500 5.00 127 9.00 229 16.34 415 43.70 1110 27.50 699 25.00 635 23.00 584 M30 20-33
24″ 600 6.06 154 10.50 267 18.70 475 51.37 1305 32.00 813 29.50 749.5 27.25 692 M33 20-36
26″ 650 6.50 165 11.50 292 20.85 530 54.72 1390 34.25 788 29.31 745 28.00 711 M20 36-22
28″ 700 6.50 165 11.50 292 22.04 560 58.07 1475 32.94 837 31.31 795 30.00 762 M20 40-22
30″ 750 6.50 165 12.52 318 22.38 580 60.03 1525 34.94 887 33.31 845 32.00 813 M20 44-22
32″ 800 7.50 190 12.50 318 24.80 630 62.40 1585 37.06 941 35.44 900 34.00 864 M20 48-22
34″ 850 7.88 200 13.00 330 25.60 650 63.00 1600 39.56 1005 37.69 957 36.25 921 M24 40-26
36″ 900 7.88 200 13.00 330 26.77 680 69.48 1765 41.62 1057 39.75 1010 38.25 972 M24 44-26
38″ 950 7.88 200 16.14 410 27.95 710 72.84 1850 44.25 1124 42.12 1070 40.25 1022 M27 40-30
40″ 1000 8.50 216 16.14 410 29.53 750 76.00 1930 46.25 1175 44.12 1121 42.50 1080 M27 44-30

Dimensions data(mm) Class 300

DN
Nominal
diameter		 Face to Face(standand) External Dimension(reference) Connection dimension(standand)
L L2 H H0 D D1 D2 M Z-d
inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm
2″ 50 1.69 43 4.25 108 4.33 110 13.58 345 6.50 165 5.00 127 3.62 92 M16 8-18
2.1/2″ 65 1.81 46 4.41 112 4.64 118 14.25 362 7.50 190 5.86 149 4.13 105 M20 8-22
3″ 80 1.88 48 7.10 180 4.92 125 14.96 380 8.25 210 6.63 168 5.00 127 M20 8-22
4″ 100 2.12 54 7.50 190 5.70 145 16.34 415 10.00 254 7.87 200 6.19 157 M20 8-22
5″ 125 2.19 56 8.27 210 6.50 165 17.91 455 11.00 279 9.25 235 7.32 186 M20 8-22
6″ 150 2.31 59 8.27 210 6.89 175 21.45 545 12.50 318 10.63 270 8.50 216 M20 8-22

Dimensions data(mm) Class 600

DN
Nominal
diameter		 Face to Face External Dimension(reference) Connection dimension(standand)
L H H0 D D1 D2 M Z-d
inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm
2″ 50 5.90 150 4.50 115 15.00 380 6.50 165 5.00 127 3.62 92 M16 8-19
2.1/2″ 65 6.70 170 5.75 145 17.00 430 7.50 190 5.88 149 4.13 105 M20 8-22
3″ 80 7.10 180 6.10 155 17.50 445 8.25 210 6.62 168 5.00 127 M20 8-22
4″ 100 7.48 190 7.80 195 20.80 530 10.00 273 8.50 216 6.19 157 M24 8-26
5″ 125 7.88 200 8.80 225 23.20 590 13.00 330 10.50 267 7.31 186 M27 8-29.5
6″ 150 8.25 210 9.40 240 24.50 620 14.00 355 11.50 292 8.50 216 M27 12-29.5
8″ 200 9.05 230 11.00 280 29.00 735 16.50 419 13.75 349 10.62 270 M30 12-32.5
10″ 250 9.85 250 12.40 315 32.00 810 20.00 508 17.00 432 12.75 324 M33 16-35.5
12″ 300 10.62 270 13.50 345 34.50 875 22.00 559 19.25 489 15.00 381 M33 20-35.5
14″ 350 11.42 290 14.50 370 37.80 960 23.75 603 20.75 527 16.25 413 M36 20-39
16″ 400 12.20 310 16.50 420 41.70 1060 27.00 685 23.75 603 18.50 470 M39 20-42
18″ 450 13.00 330 17.50 445 43.70 1110 29.25 743 25.75 654 21.00 533 M42 20-45
20″ 500 13.78 350 19.00 485 50.00 1270 32.00 813 28.50 724 23.00 584 M42 24-45
22″ 550 14.56 370 20.30 515 52.40 1330 34.25 870 30.62 778 25.25 641 M45 24-48
24″ 600 15.36 390 22.50 570 56.70 1440 37.00 940 33.00 838 27.25 692 M48 24-51
26″ 650 16.15 410 23.00 585 60.00 1525 35.00 889 31.75 806 28.62 727 M42 28-45
28″ 700 16.93 430 24.50 620 62.60 1590 37.50 953 34.00 864 30.88 784 M45 28-48
