JIS F 7351 Bronze 5K screw-down check globe valve
F7351
Product Description
The JIS F 7351 Bronze 5K screw-down check globe valve is designed to deliver robust pressure performance. With a pressure rating of 5K, this valve is capable of withstanding substantial pressure levels, ensuring reliable and safe operation in high-pressure environments.
Its construction and materials are specifically engineered to withstand the stresses associated with elevated pressures, making it suitable for applications where pressure resistance is a key consideration. Whether controlling fluid flow or providing essential isolation in pressurized systems, this valve offers the durability and performance necessary to maintain optimal pressure levels within the designated operating range.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Design and Manufacture conform to BS5163
· Flange dimensions conform to EN1092-2 PN16
· Face to face dimensions conform to BS5163
· Testing conform to BS516, 3EN12266-1
· Driving mode: Hand wheel, square cover
Specification
| HANDWHEEL | FC200 |
| STEM | C3771BD OR BE |
| DISC | BC6 |
| BONNET | BC6 |
| BODY | BC6 |
| NAME OF PART | MATERIAL |

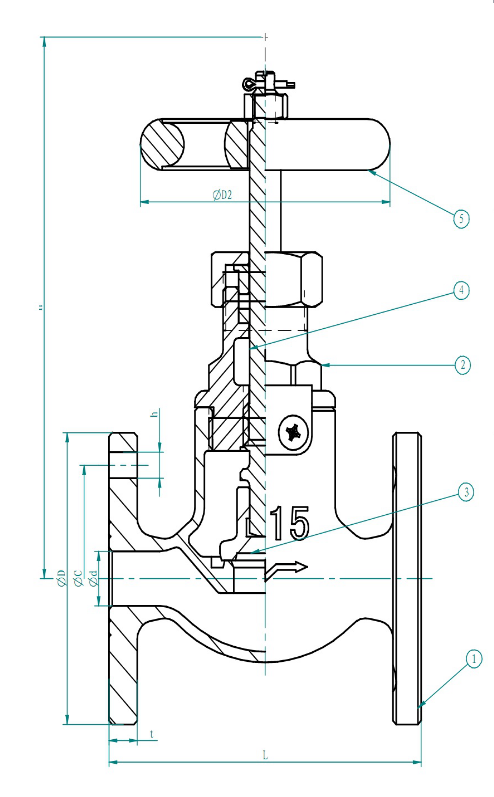

Product wireframe
Dimensions Data
| DN | d | L | D | C | NO. | h | t | H | D2 |
| 15 | 15 | 100 | 80 | 60 | 4 | 12 | 9 | 130 | 80 |
| 20 | 20 | 110 | 85 | 65 | 4 | 12 | 10 | 140 | 100 |
| 25 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 155 | 125 |
| 32 | 32 | 140 | 115 | 90 | 4 | 15 | 12 | 165 | 125 |
| 40 | 40 | 160 | 120 | 95 | 4 | 15 | 12 | 185 | 140 |
