JIS F 7377 Cast iron 16K screw-down check globe valve Featured Image
  • JIS F 7377 Cast iron 16K screw-down check globe valve
  • JIS F 7377 Cast iron 16K screw-down check globe valve

JIS F 7377 Cast iron 16K screw-down check globe valve

NO.133

Standard: JIS F7301, 7302, 7303, 7304, 7351, 7352, 7409, 7410

Pressure：5K, 10K, 16K

Size:DN15-DN300

Material：cast iron, cast steel, forged steel, brass, bronze

Type:globe valve, angle valve,

Media: Water, Oil, Steam


Product Detail

Product Tags

Product Description

The JIS F 7377 Cast Iron 16K screw-down check globe valve is designed to control the flow of fluids in a piping system. It operates on the principle of using a movable disc or plug to regulate the flow of the fluid. When the valve is open, the disc or plug is lifted to allow the fluid to pass through, and when closed, the disc or plug is lowered to block the flow.

The screw-down check globe valve is equipped with a screw mechanism that allows for precise control of the disc position, enabling the operator to adjust the flow rate as needed. The 16K rating indicates the pressure at which the valve can safely operate, making it suitable for applications requiring high-pressure fluid control in marine environments, making it well-suited for marine and industrial application.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7377-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 3.3
· SEAT: 2.42-0.4

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
PACKING GLAND BC6
STEM C3771BD
VALVE SEAT BC6
DISC BC6
BONNET FC200
BODY FC200
NAME OF PART MATERIAL

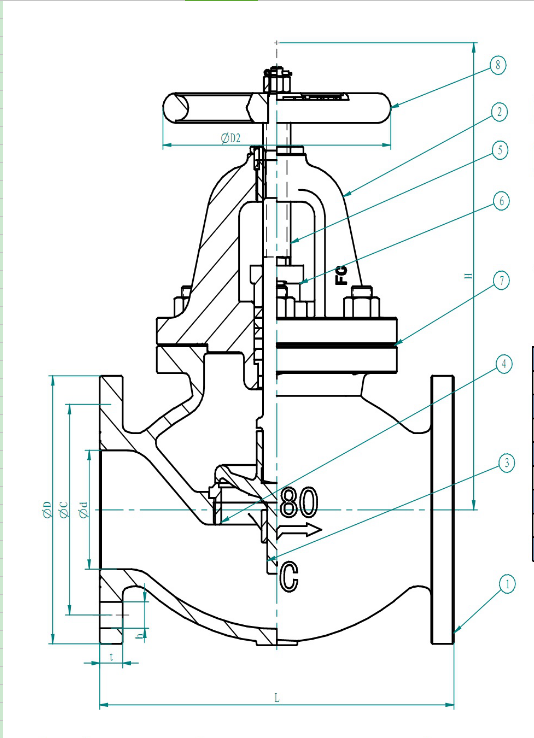

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
50 50 220 155 120 8 19 20 285 160
65 65 270 175 140 8 19 22 305 200
80 80 300 200 160 8 23 24 335 200
100 100 350 225 185 8 23 26 375 250
125 125 420 270 225 8 25 26 440 280
150 150 490 305 260 12 25 28 500 315
200 200 570 350 305 12 25 30 606 355
