JIS F 7415 Bronze 5K lift check globe valve(union bonnet type) Featured Image
  • JIS F 7415 Bronze 5K lift check globe valve(union bonnet type)

JIS F 7415 Bronze 5K lift check globe valve(union bonnet type)

F7415

Standard: JIS F7301, 7302, 7303, 7304, 7351, 7352, 7409, 7410

Pressure：5K, 10K，16K

Size:DN15-DN300

Material：cast iron, cast steel, forged steel, brass, bronze

Type:globe valve, angle valve

Media: Water, Oil, Steam


Product Detail

Product Tags

Product Description

JIS F7415 Bronze 5K lift check globe valve (union bonnet type) is a copper alloy 5K lift check globe valve that complies with Japanese Industrial Standards (JIS).

Introduce: JIS F7415 Bronze 5K lift check globe valve (union bonnet type) is a lift check globe valve suitable for fluid control in pipeline systems. It has the dual functions of a lift check valve and a stop valve, which can be used to prevent backflow and regulate fluid flow.

Advantage:

Corrosion resistance: Copper alloy material has excellent corrosion resistance and is suitable for a variety of media and working environments.
Reliability: The lifting design ensures that the valve can reliably realize the check and interception functions and ensure the stable operation of the pipeline system.
Easy maintenance: The combined valve cover design makes maintenance and inspection more convenient and can reduce downtime.

Usage: JIS F7415 Bronze 5K lift check globe valve (union bonnet type) is mainly used to control the flow of fluid in the pipeline system, prevent backflow and regulate flow. Suitable for applications in water treatment systems, water supply systems, seawater systems, shipbuilding and marine engineering.

Features

Product Overview

Copper alloy material: The valve body and valve cover are made of corrosion-resistant copper alloy, which has excellent durability and corrosion resistance.
Lift design: The valve disc adopts a lift design, which can achieve precise fluid control and prevent backflow.
5K standard pressure level: Complies with 5K standard pressure level and is suitable for medium and low pressure systems.
Combined valve cover design: The combined valve cover design facilitates maintenance and inspection.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7313-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 1.05
· SEAT: 0.77-0.4

Specification

GASKET NON-ASBESTES
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

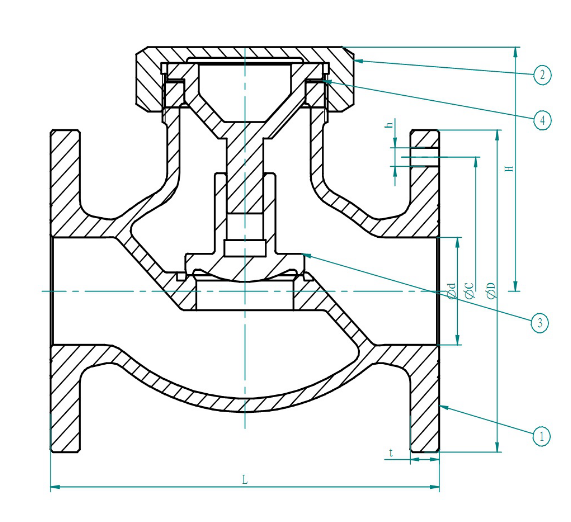

Product wireframe

Check valves are fluid control devices that restrict the flow of media in a piping system to one direction. This broadly defined check valve function plays different roles in various industries. Also known as non-return valves, one-way valves, or backflow preventers, check valves prevent flowing media from flowing back upstream.

Dimensions Data

DN d L D C NO. h t H
15 15 100 80 60 4 12 9 66
20 20 110 85 65 4 12 10 71
25 25 120 95 75 4 12 10 81
32 32 140 115 90 4 15 12 83
40 40 160 120 95 4 15 12 91
