JIS F 7416 Bronze 5K lift check angle valve(union bonnet type)
NO.142
Product Description
Introduction: JIS F 7416 Bronze 5K lift check angle valve (union bonnet type) is a bronze 5K lift check valve manufactured according to the Japanese Industrial Standard (JIS), with a joint cap structure.
Advantages:
Strong applicability: suitable for marine engineering and shipbuilding fields, able to meet the needs of vertically installed pipeline systems.
Strong durability: Bronze material has good corrosion resistance, adapts to seawater environment, and can operate stably for a long time.
Easy to maintain: The combined cover structure is easy to maintain and repair, reducing downtime.
Usage: JIS F 7416 Bronze 5K lift check angle valve (union bonnet type) is mainly used in the fields of ships and marine engineering, especially suitable for pipeline systems that require vertical installation and check function. Its main purpose is to serve as a check in fluid pipeline systems in marine environments.
Features
Product Overview
Side in and side out design: With a side in and side out structure, suitable for vertically installed pipeline systems.
Bronze material: Made of bronze, it has good corrosion resistance and the ability to adapt to seawater environments.
Joint cover structure: With a joint cover structure, it is easy to maintain and repair.
Technical Requirement
· DESIGN STANDARD:JIS F 7313-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 1.05
· SEAT: 0.77-0.4
Specification
| GASKET | NON-ASBESTES |
| DISC | BC6 |
| BONNET | BC6 |
| BODY | BC6 |
| NAME OF PART | MATERIAL |

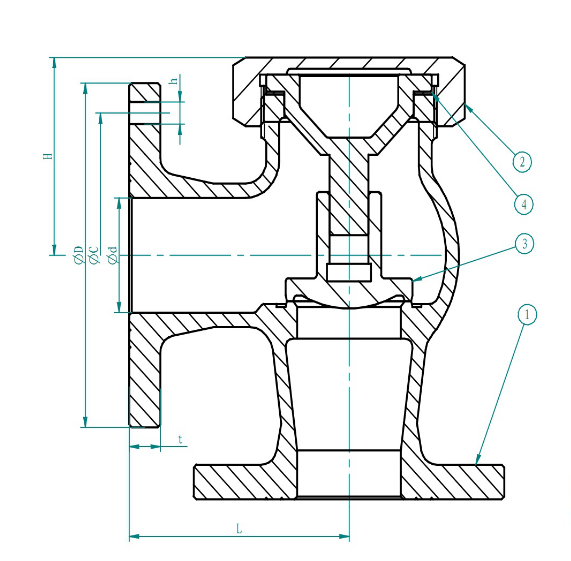

Product wireframe
Dimensions Data
| DN | d | L | D | C | NO. | h | t | H |
| 15 | 15 | 55 | 80 | 60 | 4 | 12 | 9 | 56 |
| 20 | 20 | 60 | 85 | 65 | 4 | 12 | 10 | 59 |
| 25 | 25 | 65 | 95 | 75 | 4 | 12 | 10 | 67 |
| 32 | 32 | 80 | 115 | 90 | 4 | 15 | 12 | 65 |
| 40 | 40 | 85 | 120 | 95 | 4 | 15 | 12 | 69 |
