JIS F 7356 Bronze 5K lift check valves
NO.122
Product Description
Introduction:
JIS F 7356 Bronze 5K lift check valve is a valve used in marine engineering and shipbuilding fields. It is made of bronze material and meets the standard of 5K pressure rating. It is usually used in pipeline systems that require check function.
Advantages:
Corrosion resistance: Bronze valves have excellent corrosion resistance and are suitable for marine environments.
High reliability: The lifting check valve can ensure that the medium will not flow back, ensuring the safe operation of the system.
Wide applicability: suitable for marine engineering and shipbuilding fields, especially suitable for application scenarios that require anti-corrosion performance.
Usage:
JIS F 7356 Bronze 5K lift check valve is commonly used in pipeline systems in fields such as ships, marine engineering, and offshore platforms to prevent medium backflow and ensure safe and stable operation of the system. Its main purpose is to serve as a check in fluid pipeline systems in marine environments.
Features
Product Overview
Lift design: With a lift structure, it can effectively prevent the reverse flow of the medium.
Bronze material: Made of high-quality bronze material, it has good corrosion resistance and adaptability to seawater environment.
Compliance with standards: Complies with JIS F 7356 standard, ensuring its quality and performance meet regulatory requirements.
Technical Requirement
· DESIGN STANDARD:JIS F 7356-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 1.05br
· SEAT: 0.77-0.4br
Specification
| GASKET | NON-ASBESTES |
| DISC | BC6 |
| BONNET | BC6 |
| BODY | BC6 |
| NAME OF PART | MATERIAL |

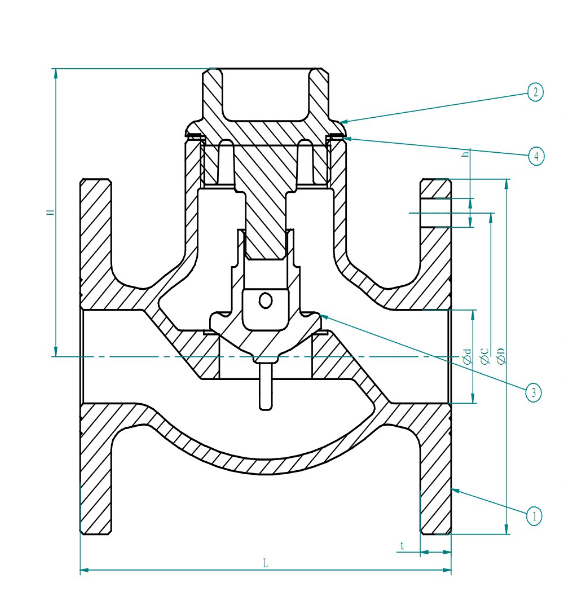

Product wireframe
Dimensions Data
| DN | d | L | D | C | NO. | h | t | H |
| 25 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 77 |
| 32 | 32 | 140 | 115 | 90 | 4 | 15 | 12 | 81 |
| 40 | 40 | 160 | 120 | 95 | 4 | 15 | 12 | 91 |
