Wafer type PN16 Rubber Coated Check Valve

CHV801

size:DN50-DN600;2’’-24’’

Medium:water

Standard:EN12334/BS5153/MSS SP-71/AWWA C508

Pressure:CLASS 125-300/PN10-25/200-300PSI

Material:CI,DI

Type:wafer,swing


Product Detail

Product Tags

Product Description

Why to make the full body with rubber coated?

Corrosion resistance: The rubber coating on the valve surface enhances its resistance to corrosion.

Wear resistance: The rubber coated double disc design reduces friction between the disc and seat, improving the valve’s service life.

Advantage:

Good sealing performance: Rubber coating can provide good sealing performance and prevent medium backflow.
Wafer-type design: The clamp-type design makes the valve easy to install and is suitable for occasions with limited installation space.
Wide applicability: suitable for various liquid media and has good versatility.

Usage: Wafer type PN16 Rubber Coated Check Valve is suitable for water supply systems, sewage treatment systems, industrial pipeline systems, etc. to prevent medium backflow and protect the normal operation of pipeline systems. Its rubber coating gives the valve good sealing performance and is suitable for applications requiring reliable sealing.

Features

Product Overview

Wafer design: The valve adopts a wafer-type structure, which is easy to install and takes up little space.
PN16 pressure level: Suitable for piping systems with PN16 pressure level.
Inside body coating: The inside body is coated with rubber material to enhances its resistance to corrosion.

product_overview_r
product_overview_r

Technical Requirement

· Flange dimensions Conform to EN1092-2/ANSI B16.1
· Testing Conform to EN12266-1, API598

Specification

Part Name Material
BODY DI
CLAPPER PLATE SS304/SS316/BRONZE
HANGER SS304/316
SEALING RING EPDM
SPRING SS304/316
STEM SS304/316

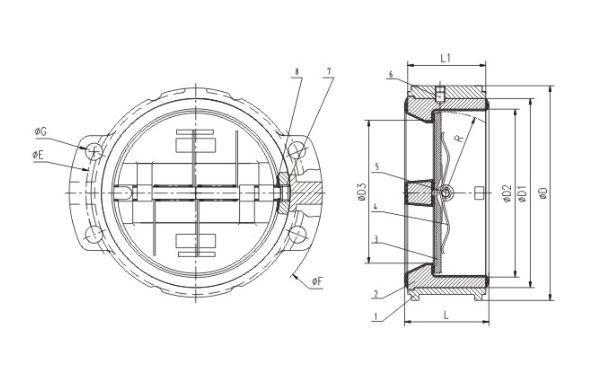

Product wireframe

Dimensions Data

DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L 43 46 64 64 70 76 89 114 114 127 140 152 152 178
D PN16、PN25 107 127 142 162 192 218 273 329 384 446 498 550 610 720
CLASS 125 103 122 134 162 192 218 273 329 384 446 498 546 603 714
D1 65 80 94 117 145 170 224 265 310 360 410 450 500 624
b 9 10 10 10 12 12 13 14 14 17 23 25 25 30
